Product Description

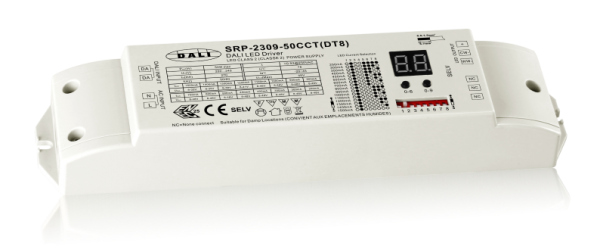

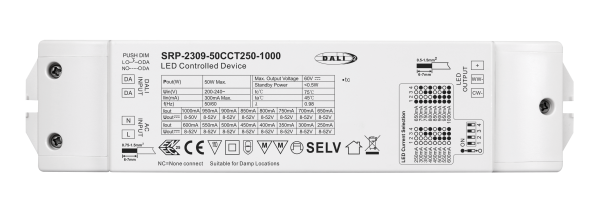

The SRP-2309-50CCT250-1000 is a dimmable led driver, and the max output power is 50W.
Two channel 250-1000mA constant current output, select by DIP device. Smooth and deep dimming up to 0.01%. The voltage
range is 200-240VAC50/60HZ frequency range. PWM dimming method is adopted and linear/Logarithmic optional.
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
• Built-in DALI-2/Push interface, DALI DT8 device
• Dimmable LED driver. Max. output power 50W
• 2 channel 250-1000mA constant current output, select by DIP switch
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim Tunable White LED lighting fixtures
• Hybrid(PWM+CCR) dimming, smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT8 commands
• Error report function
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
