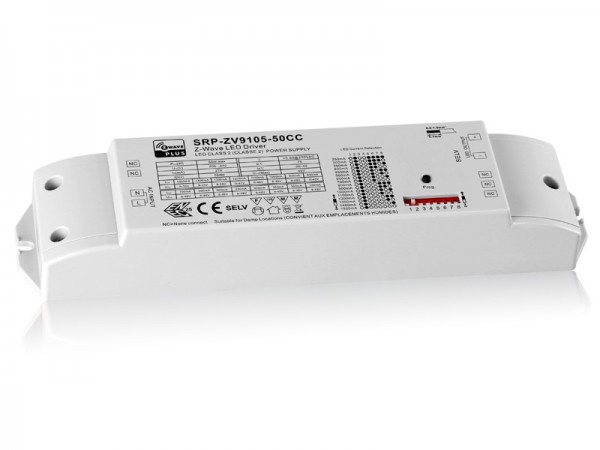

- 50W Constant Current Z-Wave LED Dimmable Driver SRP-ZV9105-50W-CC
SRP-ZV9105-50W-CC is a Dimmable 50w LED Driver with 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for constant current LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with Z-Wave Plus control interface which can be included to Z-Wave network and be controlled from your controller or hub interface. The driver can be compatible with universal Z-Wave gateway or primary controller. In addition, the Z-Wave device can bind with Z-Wave remote or wall controllers and controlled by the them.
Key Features
Specifications
Part No. | Input Voltage | Input Current | Output Current | Output Voltage Range | Output type | Dimension (mm) |
---|---|---|---|---|---|---|
SRP-ZV9105-50W-CC | 200-240VAC | 0.5A Max. | 250mA-1500mA | 8-48VDC | Constant Current | 50*210*32 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZV9105-50W-CC User Manual
