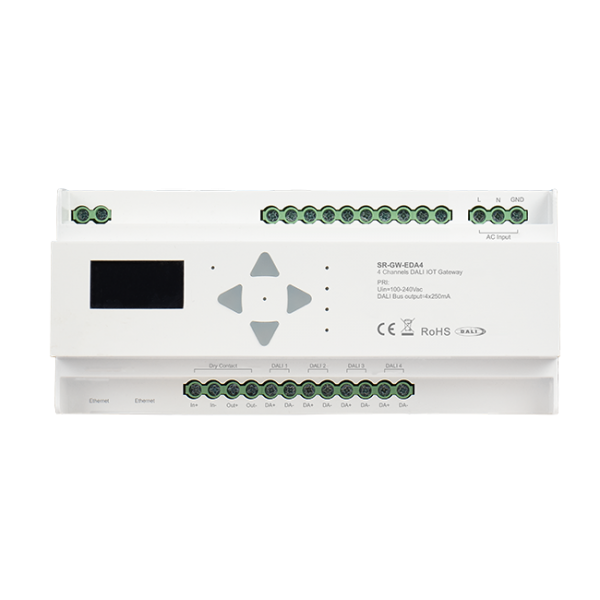

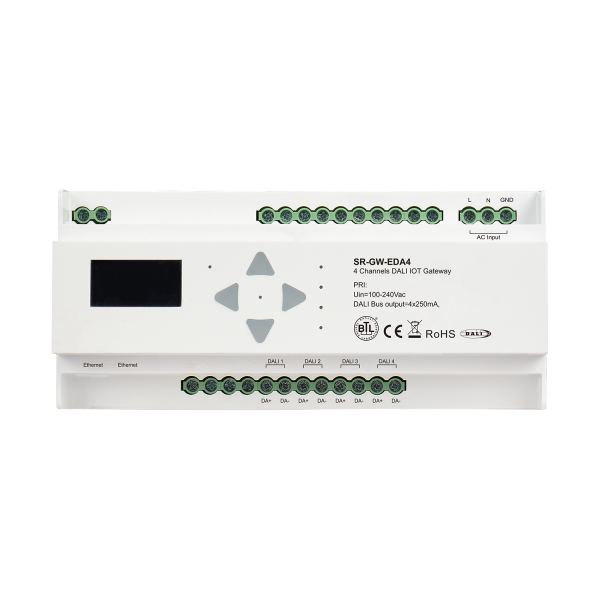

4 Channels DALI IoT Gateway SR-GW-EDA4

The 4-Channel DALI IoT Gateway is designed for reliable and scalable DALI-2 lighting control applications. It supports DT6 and DT8 (Tc, XY, RGBWA) devices, DALI-2 emergency lighting, and a wide range of DALI-2 input devices including push buttons, rotary panels, motion and daylight sensors. Each DALI bus provides up to 250 mA output and supports up to 64 control gears and 64 input devices. The gateway features an OLED display for local operation, supports commissioning via the DALI Center platform, and enables seamless BMS integration through MQTT, API, and BACnet.

Key Features

• 4 channels DALI IOT gateway
• Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
• Supports DALI-2 emergency lighting
• Supports DALI-2 push button and rotary panel, DALI-2 motion and daylight sensor
• With OLED screen and navigation buttons for menu operations
• Each DALI bus with max. 250mA DALI bus current output
• Supports 4*64 DALI control gears + 4*64 DALI input devices
• Commissioning via DALI Center platform
• Supports group, scene, and automation
• 1 channel dry contact input & 1 channel dry contact output
• Support MQTT, API, BACnet protocols for BMS integrated
• Waterproof grade: IP20
