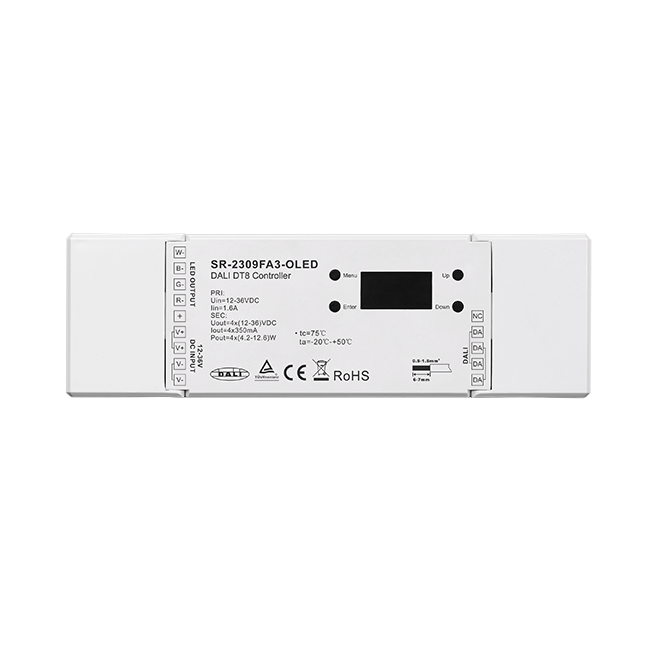

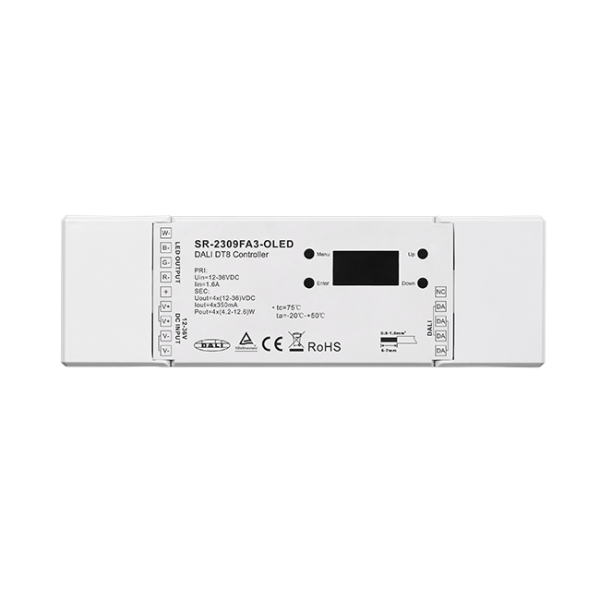

4 Channels DALI DT8 Dimmer with Built-in Master Function SR-2309FA3-OLED

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• DALI DT8 dimmer, 4 channels PWM output, built-in DALI master function
• OLED display interface , easy & fast installation
• No DALI master required for configuration
• Cost & time saving than DALI USB configuration
• DT8 colour types all in one: XY, Tc, RGBWA, XY+Tc and RGB+Tc settable
• Each device is controlled via a single DALI address
• Enable to address and group the DT8 device
• Enable to predefine & recall 16 scenes for the DT8 device
• 250Hz-30KHz PWM frequency settable, smooth and fine DT8 colour control
• Enables to set a min. level for dimming between this level to max. level
• Enable to set output level and manual control (stand-alone)
• Enables to set fade time, fade rate, power on level, system failure level
• Compatible with universal DALI masters that supports DT8 commands.
