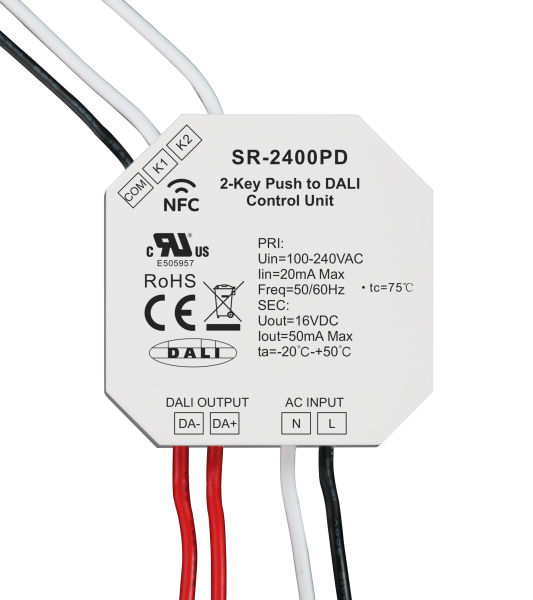

2-Key Push to DALI Control Unit DALI Push Button Coupler Dry Contact Motion Sensor Coupler NFC Programmable SR-2400PD
2 Channels Push Switch Input or Dry Contact Motion Sensor Input
COM (black): common ground for the 2 keys
K1 (white): first key/motion sesnor input
K2 (white): second key/motion sensor input
• 2 channels push switch input or dry contact motion sensor input
• PD (Push Dim) mode with push switch input or CD (Corridor Dim) mode with dry contact motion sensor input
• PD mode or CD mode can be set through NFC
• Can work as standalone DALI sensors when connecting with dry contact motion sensors and set as CD mode
• 100-240VAC power supply (active mode) or DALI bus powered (passive mode)
• Built-in 50mA DALI bus power supply to control up to 25 DALI DT6/DT8 control gears
• Up to 100 DALI control gears can be controlled while 4 control units connected to AC mains
• DALI current consumption less than 4mA
• Controlled DALI device type can be freely configured through NFC App
• Supported device types: DT6, Tc, XY coordinates, RGBWAF
• Controlled object of each push switch can be freely configured through NFC App
• Supports broadcast, single address, and group control
• Each push switch supports three different operations: short press, long press, double click
• DALI command triggered by the a push switch operation can be freely configured through NFC App
• Each DALI line can install multiple control units for multi control points

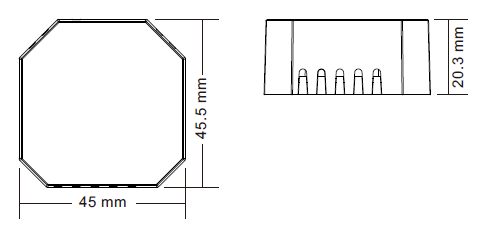

2-Key Push to DALI Control Unit DALI Push Button Coupler Dry Contact Motion Sensor Coupler NFC Programmable SR-2400PD
Download Center
To know further details of this product, please download the following user manual.
SR-2400PD User Manual
