Product Description

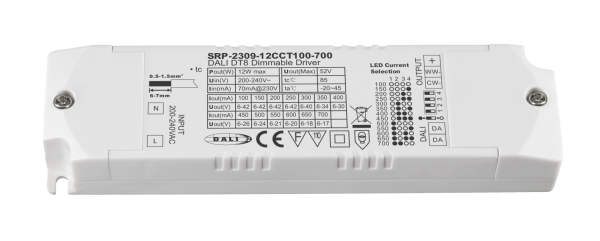

The SRP-2309-12CCT100-700 (PWM) is a dimmable led driver, and the max output power is 12W. The advantage is its size, only 35mm height.
Two channel 100-700mA constant current output, select by DIP device. Smooth and deep dimming up to 0.01%. The voltage range is 200-240VAC
50/60HZ frequency range. PWM dimming method is adopted and linear/Logarithmic optional.
Key Features
•In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
•Dimmable LED driver. Max. output power 12W
•PWM dimming, smooth and deep dimming
•IP20 rating, suitable for indoor LED lighting applications
•High power factor and efficiency
• Built-in DALI-2/Push interface, DALI DT8 device
•5 years warranty
•To switch and dim Tunable White LED lighting fixtures
•Compatible with universal DALI masters that support DT8 commands
•Error report function
•2 channel 100~700mA constant current output, select by DIP switch
•Class Ⅱ power supply, full isolated plastic case
