Product Description

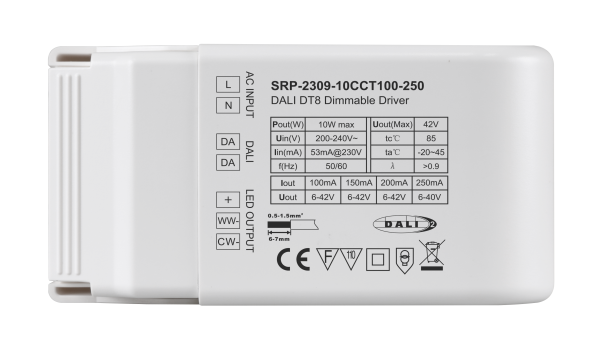

The SRP-2309-10CCT100-250 is a dimmable led driver, and the max output power is 10W.
Two channel 100-250mA constant current output, select by DIP device. Smooth and deep dimming up to 0.01%. The voltage
range is 200-240VAC50/60HZ frequency range. PWM dimming method is adopted and linear/Logarithmic optional.
Key Features
• 5 years warranty
• To switch and dim Tunable White LED lighting fixtures
• IP20 rating, suitable for indoor LED lighting applications
• High power factor and efficiency
• Error report function
• Compatible with universal DALI masters that support DT8 commands
• 2 channel 100~250mA constant current output, select by DIP switch
• Class 2 power supply, full isolated plastic case
• Dimmable LED driver. Max. output power 10W
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
