Product Description

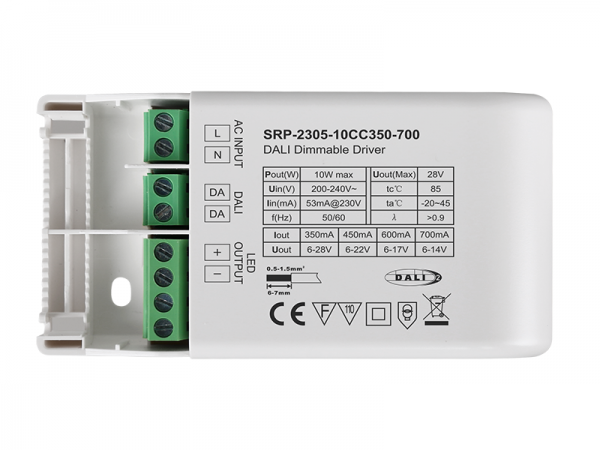

This 10W DALI DT6 LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and compatible with universal DALI masters that support DT6 commands. With built-in DALI-2/Push interface, this DALI DT6 device is endowed with high power factor and efficiency. This dimmable driver has maximum output power of 10W. With 1 channel 350~700mA constant current output, it is selected by DIP switch. With class Ⅱ power supply and full isolated plastic case, this driver can switch and dim LED lighting fixtures. It features hybrid (PWM+CCR) dimming, in tandem with smooth and deep dimming to 0.1%. Besides, it has error report function. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2/Push interface, DALI DT6 device
• Dimmable LED driver. Max. output power 10W
• 1 channel 350~700mA constant current output, select by DIP switch
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim LED lighting fixtures
• Hybrid(PWM+CCR) dimming, smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT6 commands
• Error report function
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
