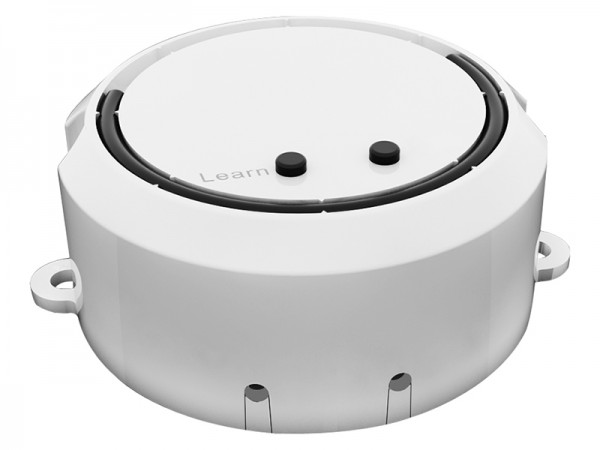

- 1 Channel AC Triac RF Switch SR-1009SAC-Switch
The SR-1009SAC-Switch is a Triac RF switch designed with 220-240VAC input and 220-240VAC output and safe and reliable full isolation design to switch on/off single color LED lamps, traditional incandescent and halogen lights. The RF switch comes with 1 channel and maximum 100W output and can be compatible with a variety of perfect RF series remote controls.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-1009SAC-Switch | 220-240VAC | 220-240VAC | 0.45A max. | 100W max | IncandescentHv-halogen lampsLED lamps | D46.5*H19.5 |
Control Type | Controller Model |
---|---|
Handhold | SR-2819DIM, SR-2833K5 |
Wall Mounted Touch | SR-2830A, SR-2833T1, SR-2833T2 |
Wall Mounted Push | SR-2833K1/K2 |
Wall Mounted Rotary | SR-2836R, SR-2836D, SR-2836NF |

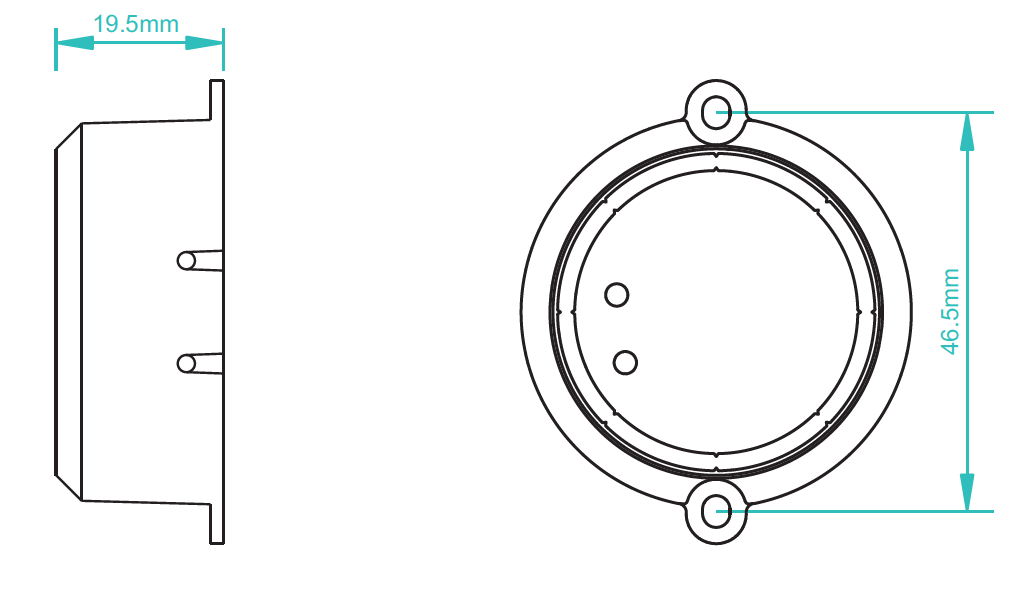

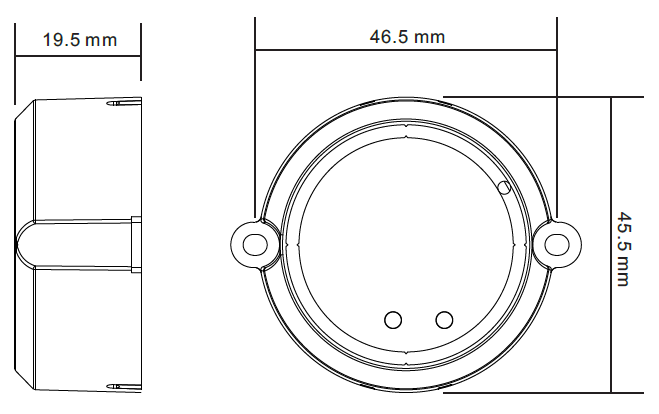

Product Dimension

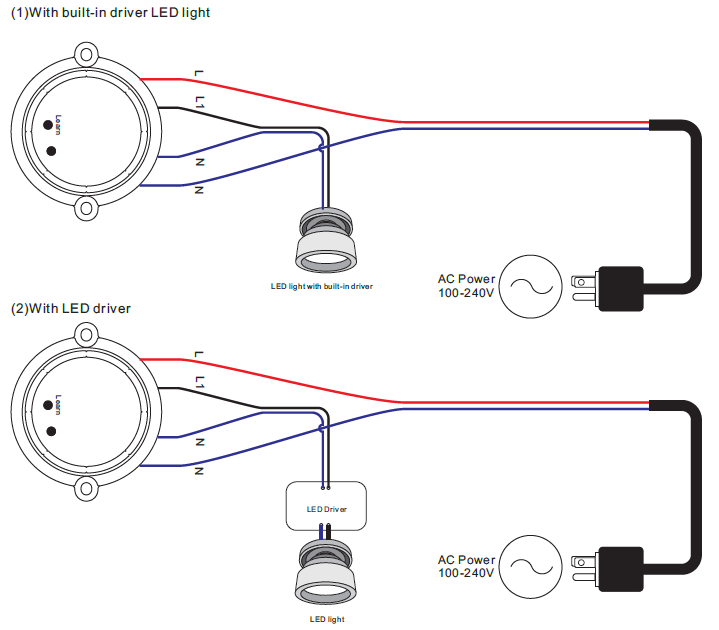

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-1009SAC-Switch User Manual
