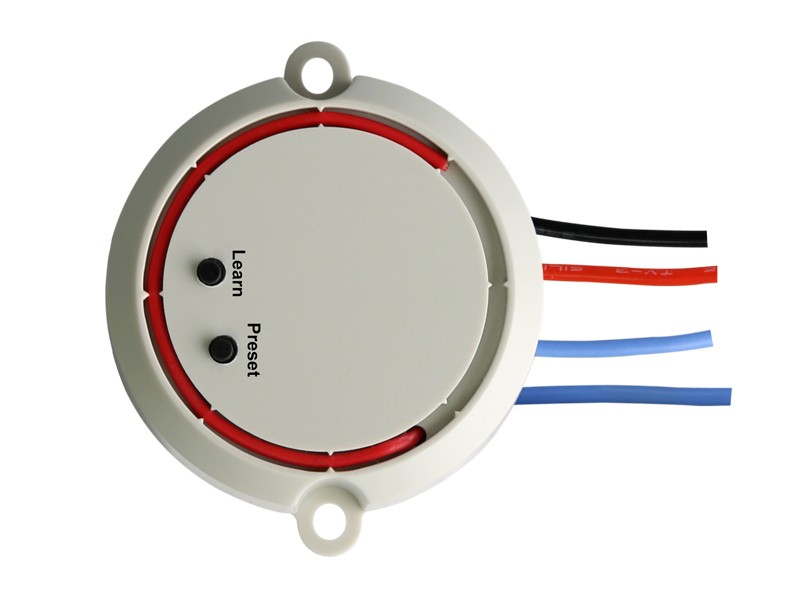

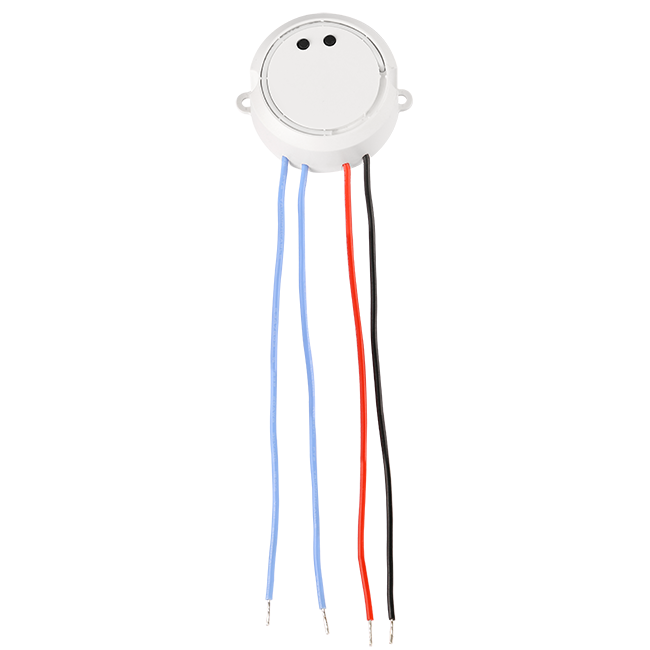

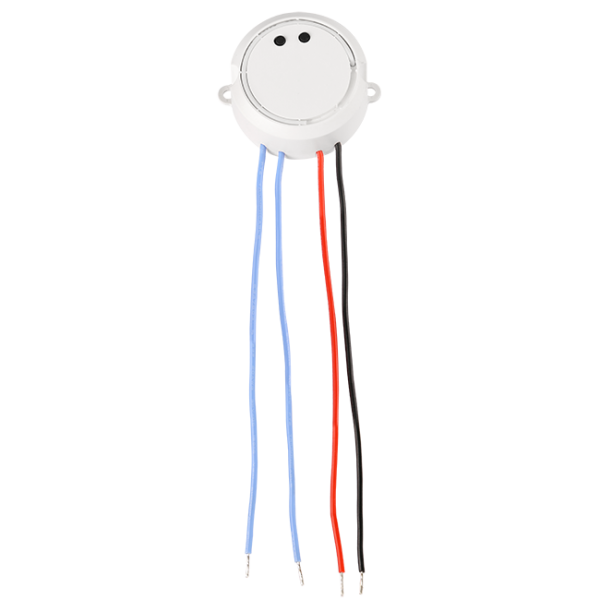

- 1 Channel AC Triac RF Dimmer SR-1009SAC
The SR-1009SAC is a Triac RF dimmer designed with 220-240VAC input and 220-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. The Triac LED dimmer is designed with 1 channel and maximum 100W output. The RF dimmer is both triac dimmable and mosfet dimmable. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The RF triac dimmer can be compatible with a variety of Perfect RF series remote controls.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-1009SAC | 220-240VAC | 220-240VAC | 0.45A max. | 100W max. | IncandescentHv-halogen lampsDimmable LED lamps | D46.5*H19.5 |
Control Type | Controller Model |
---|---|
Handhold | SR-2819DIM, SR-2833K5 |
Wall Mounted Touch | SR-2830A, SR-2833T1, SR-2833T2 |
Wall Mounted Push | SR-2833K1/K2 |
Wall Mounted Rotary | SR-2836R, SR-2836D, SR-2836NF |

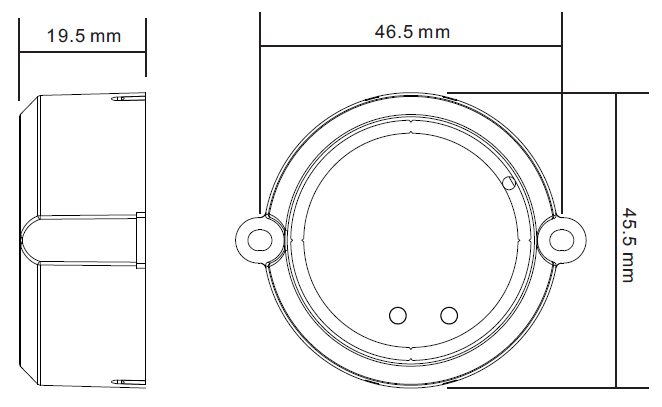

Product Dimension

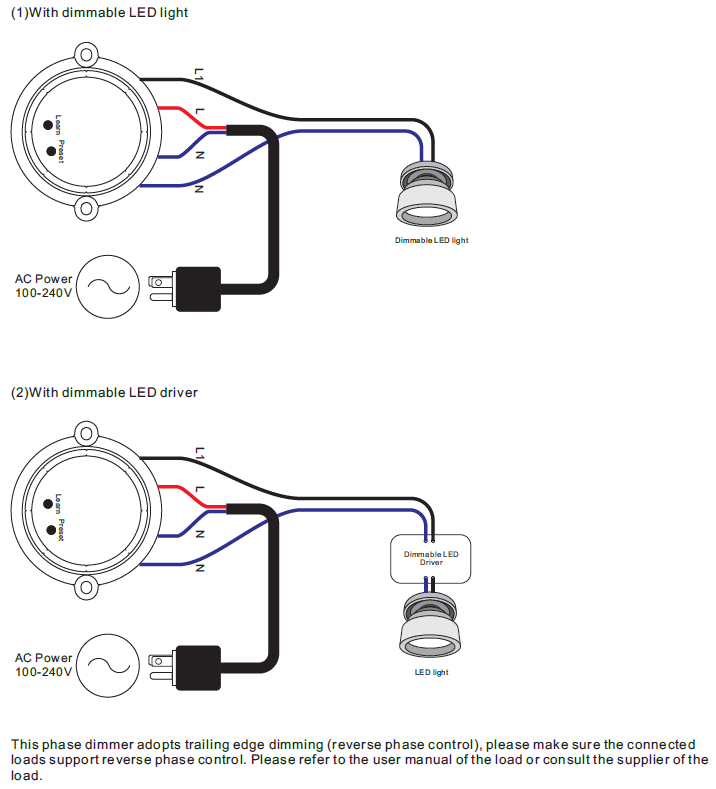

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-1009SAC User Manual
