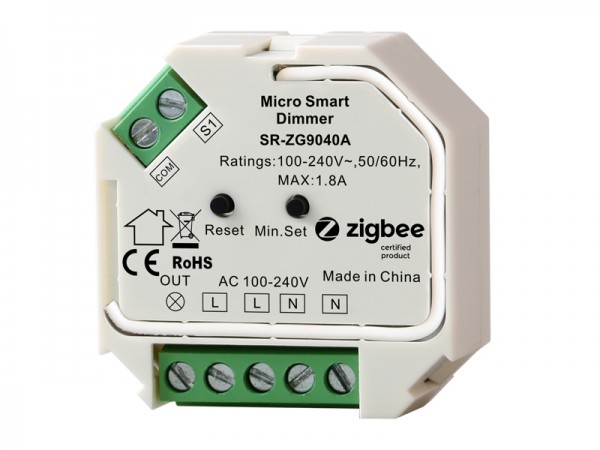

- ZigBee With Neutral Or No Neutral Wire Self Adaptive Micro Smart Dimmer SR-ZG9040A
The SR-ZG9040A is an innovative micro smart dimmer with ZigBee control interface. The zigbee dimmer is designed with 100-240VAC wide input and output, innovative self adaptive two wire connection (no neutral wire) or three wire connection (with neutral wire) enables the switch to be a perfect solution for both retrofits and new installations, 1 channel and maximum 400W output for resistive loads and 200W for capacitive loads. The ZigBee smart dimmer adopts trailing edge dimming. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The AC dimmer can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the dimmer.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-ZG9040A | 100-240VAC | 100-240VAC | 1.8A max. | 400W max. @ 220V | IncandescentHv-halogen lampsDimmable LED lamps | L45.5*W45*H20.3 |

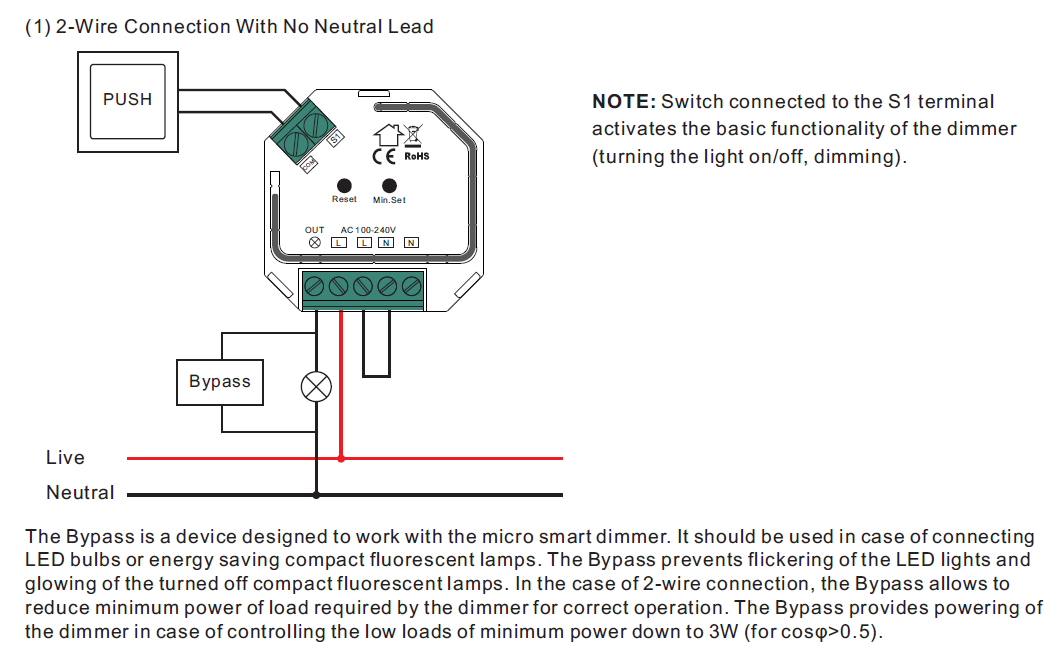

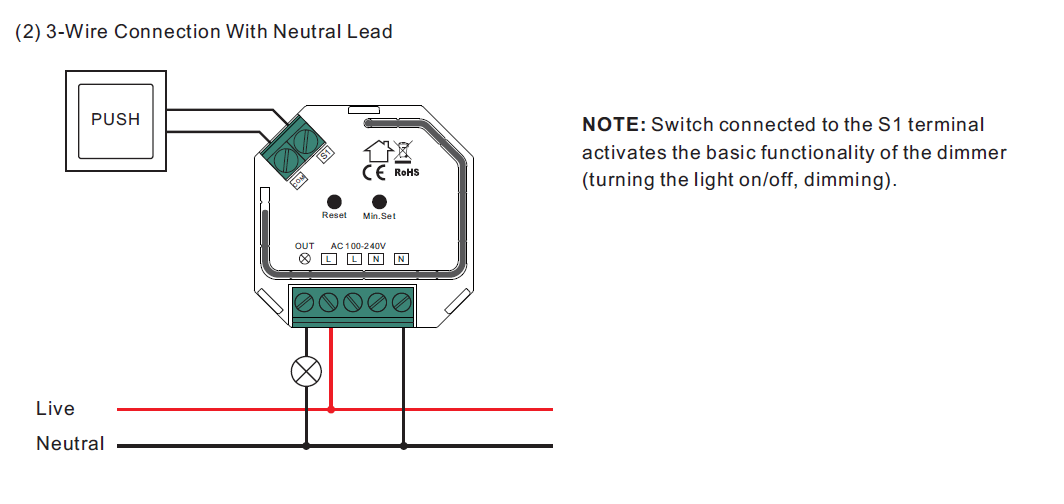

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9040A User Manual
