- RGB DT8 DALI Master Rotary Controller SR-2400RB-NF-RGB

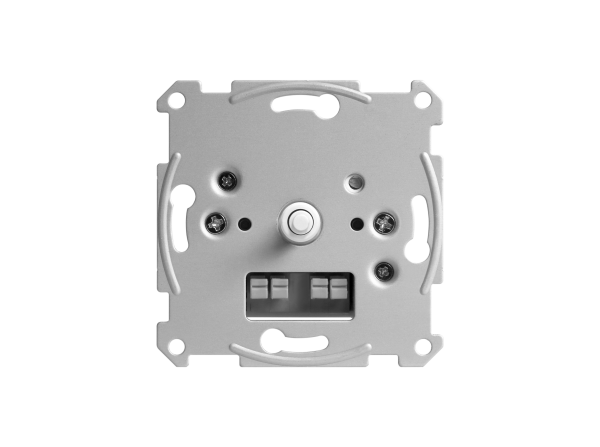

The SR-2400RB-NF-RGB is a RGB DT8 DALI master rotary controller without frame and with DALI output for dimming and RGB color adjusting of RGB DALI DT8 devices. It supports dimming commands and DT8 commands and can be compatible with universal DT8 devices. It is a DALI master designed with a built-in DALI power supply with 100-240VAC wide input which can power DALI bus while connected to AC mains. While not connected to AC mains, the rotary dimmer can be powered by DALI bus. The DALI rotary master is updated with a standard 4mm diameter rotary axis that is perfect to use in Europe. Each MCU can power up to 50 DALI ECGs with max. 100mA DALI output. Maximum 2 active DALI MCUs powered by AC mains and 2 passive MCUs powered by DALI bus can connect to DALI bus and control up to 100 DALI ECGs for multiple control points. Dimming solutions are easy and reliable, no DALI addressing required. The DT8 DALI master controls all devices on the circuit through broadcast. Double clicking the knob will switch from dimming to RGB color adjusting. Compatible with common European size accessories, the DALI manual control unit is easy to install.
Key Features
Part No. | Operation Voltage | Output | Dimension (mm) |
---|---|---|---|
SR-2400RB-NF-RGB | 100-240VAC/Provided by DALI Bus | DALI Signal | 71.5*71.5*33.5 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2400RB-NF-RGB User Manual
