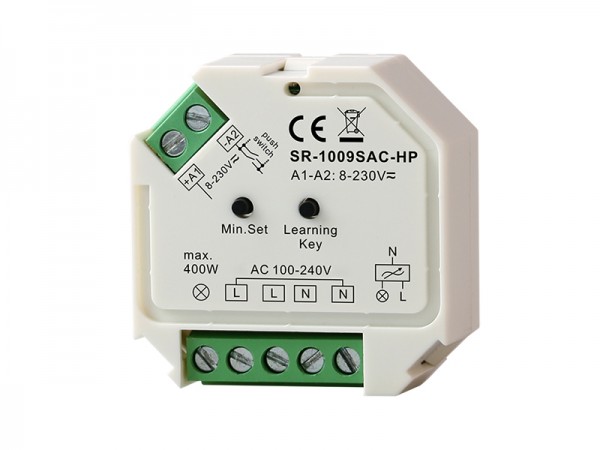

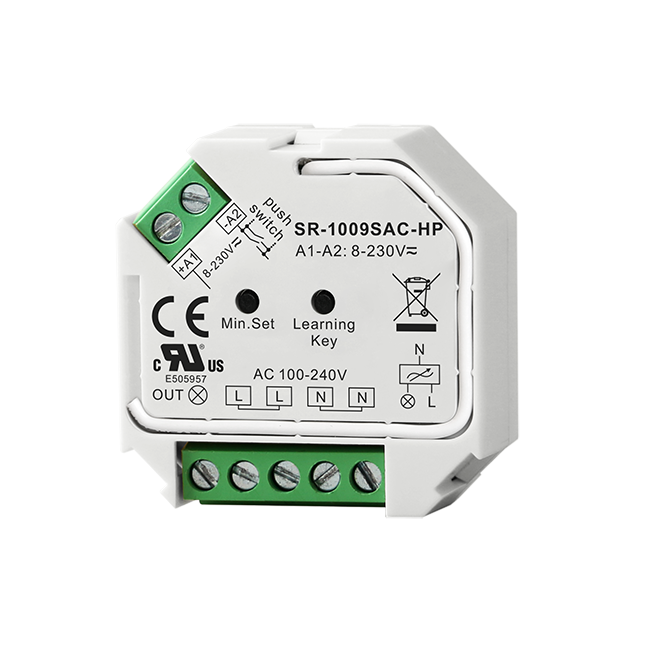

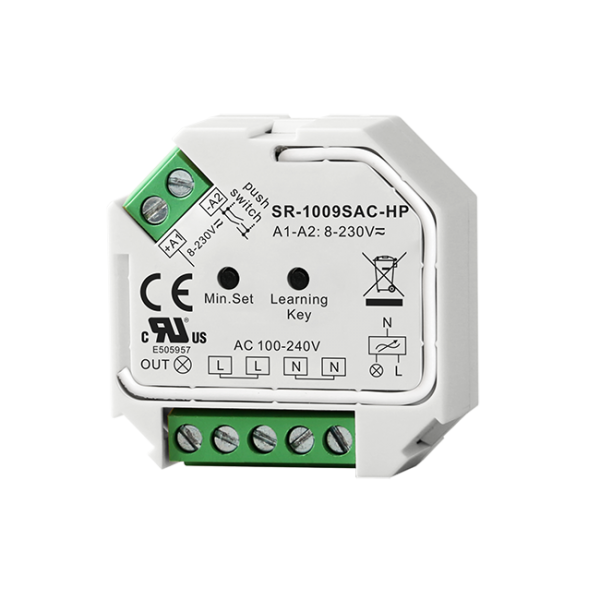

- RF/WiFi Control AC Phase-Cut Dimmer with Push Dim SR-1009SAC-HP
The SR-1009SAC-HP is an innovative AC phase-cut dimmer with RF control and push dim function. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The RF dimmer is both triac dimmable and mosfet dimmable. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The RF triac dimmer can be compatible with a variety of Perfect RF series remote controls. While working with a WiFi-RF conveter, the phase-cut dimmer can be WiFi controlled via APP installed on IOS or Android system.
Push dim function is available while the dimmer is connected with a push switch. It is compatible with universal 8v-230v AC and DC input push switches.
Key Features
Function Introduction
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-1009SAC-HP | 100-240VAC | 100-240VAC | 1.5A max. | 400W max. @ 220V | IncandescentHv-halogen lampsDimmable LED lamps | L45.5*W45*H20.3 |
Control Type | Controller Model |
---|---|
Handhold | SR-2819DIM, SR-2833K5 |
Wall Mounted Touch | SR-2830A, SR-2833T1, SR-2833T2 |
Wall Mounted Push | SR-2833K1/K2 |
Wall Mounted Rotary | SR-2836R, SR-2836D, SR-2836NF |

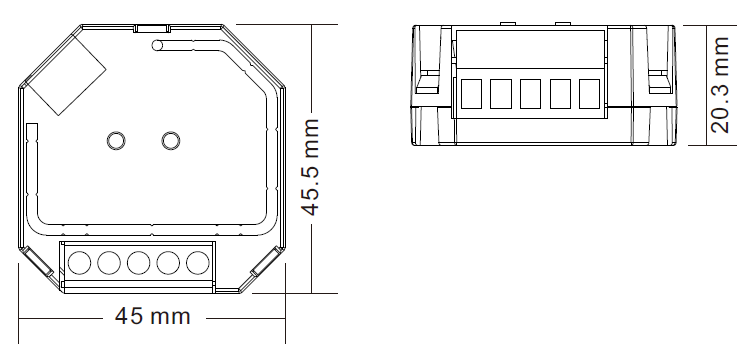

Product Dimension

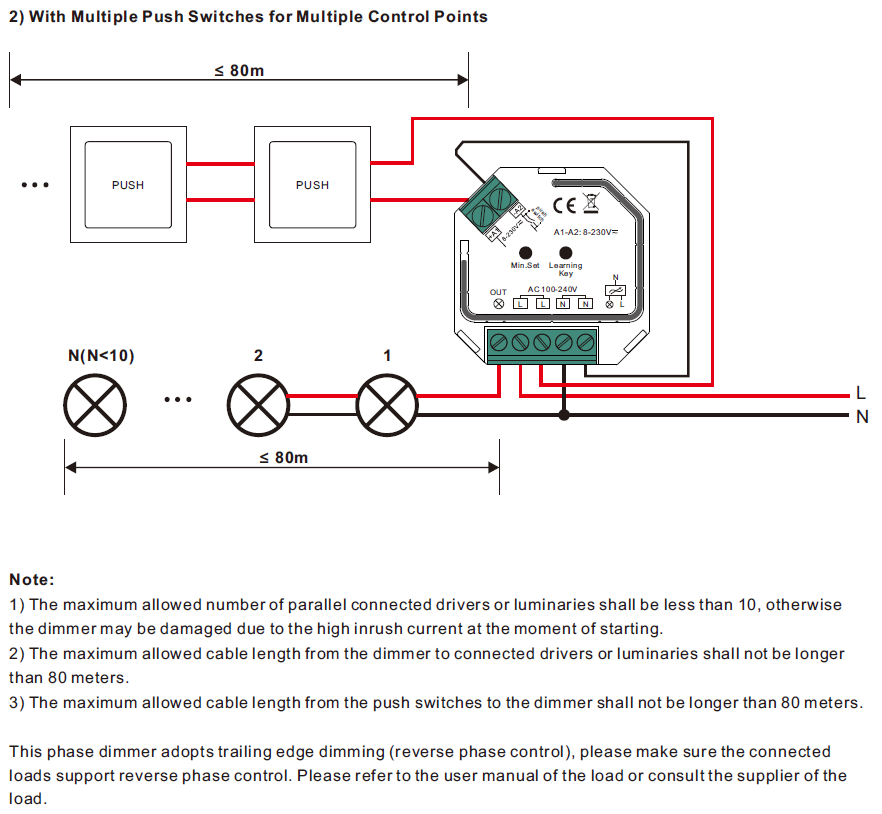

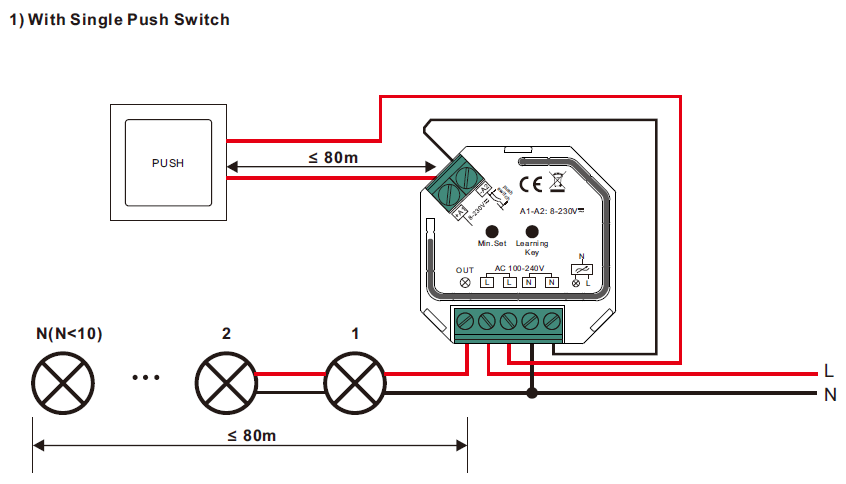

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-1009SAC-HP-V2-Instruction.pdf
