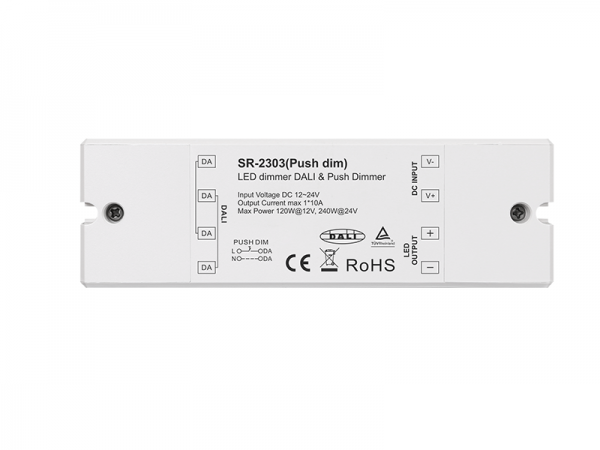

- Mini Size Constant Voltage DALI & PUSH Dimmer SR-2303 (Push Dim)
Product Description
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• 1 DALI address input, 1 channel output
• Mini size, high output current, 10A/ch
• PUSH dim function, directly support AC high voltage input PUSH switch
• DALI dimmer function while controlled by DALI master
• Waterproof grade: IP20
Specifications
Part No. |
Input Voltage |
Output Current |
Output Power | Size(LxWxH) |
---|---|---|---|---|
SR-2303s (Push Dim) |
12-24VDC |
1x10A |
1x(120-240)W |
145x46.5x16mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2303-Push-Dim-Instruction.pdf
