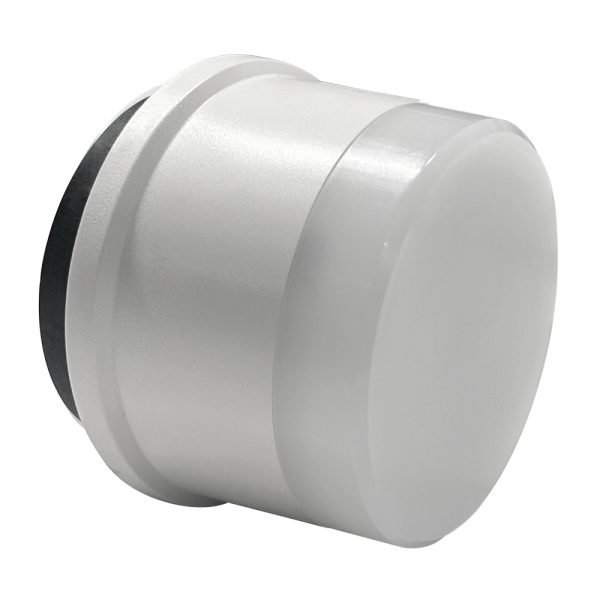

IP65 BLE 0-10V Motion Sensor with Z-10 Interface Socket SR-SV9033Z-MW-V

The IP65 motion sensor combines motion sensor and light sensor. The device performs motiondetection and measures illuminance level. With standard ZHAGA Book 18 interface socket, the sensor can easily fit into various luminaires with no tools required.

Key Features

Bluetooth to 0-10V sensor controller , Bluetooth® mesh network
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on 0-10V line are broadcast controlled by mobile application
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
Autonomos sensor-based control
ZHAGA Book 18 socket
On-board antenna
Available with Magnetic reset (touch the top part of sensor for 5 seconds)
Waterproof grade: IP65, suitable for outdoor luminaries
5 Years Warranty

Specifications

Part No.	Input Voltage	Input Signal	Output Signal	0-10V Output Current	Sensor Type	Detection Range
SR-SV9033Z-MW-V	12-24VDC	Silvair Bluetooth	0/1-10V	Max. 20mA	Microwave Sensor	φ13m@12m

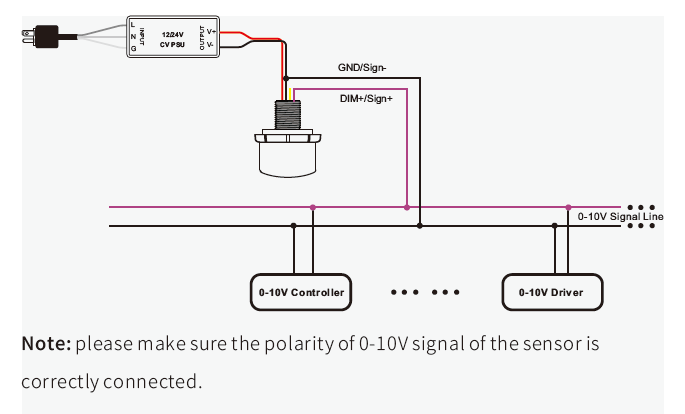

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-SV9033Z-MW-V User Manual
