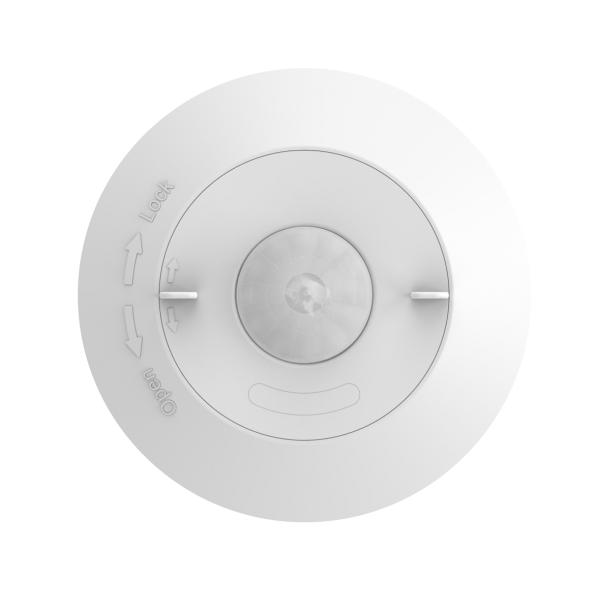

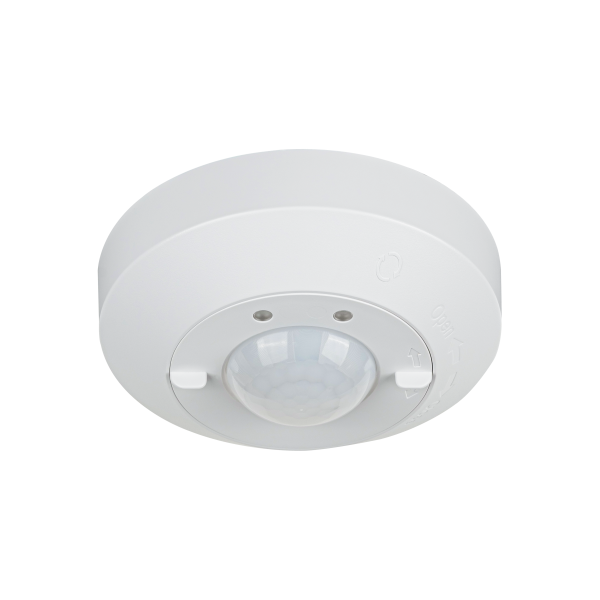

BLE to 0-10V Ceiling Mounted AC PIR Sensor With 5A Relay SR-SV9030B-PIR-LBV

Product Description

The ceiling-mounted sensor SR-SV9030B-PIR-LBV is a low-bay (LB) Bluetooth-to-0-10V sensor powered by 100-277VAC, with a 5A relay output. It receives Bluetooth mesh signal input and provides a 0-10V analog output signal. The 0-10V dimming output has a maximum 20mA current output, which can connect to a minimum of 10PCS 0-10V drivers. The sensor combines occupancy sensing, daylight harvesting, 0-10V dimming, and Silvair Bluetooth into one device. It utilizes a Bluetooth® Low Energy (BLE) mesh network. Commissioning can be performed through the SILVAIR mobile app or desktop site.

Key Features

• Bluetooth to 0-10V sensor controller
• Bluetooth® NLC Certified
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• Autonomos sensor-based control
• Support sensitivity adjustment, Mesh Network, a better method to deal with false trigger
• Available with Magnetic reset (touch reset icon for 5 seconds)
• On-board antenna
• Waterproof grade: IP20, suitable for indoor luminaries
• 5 years warranty
