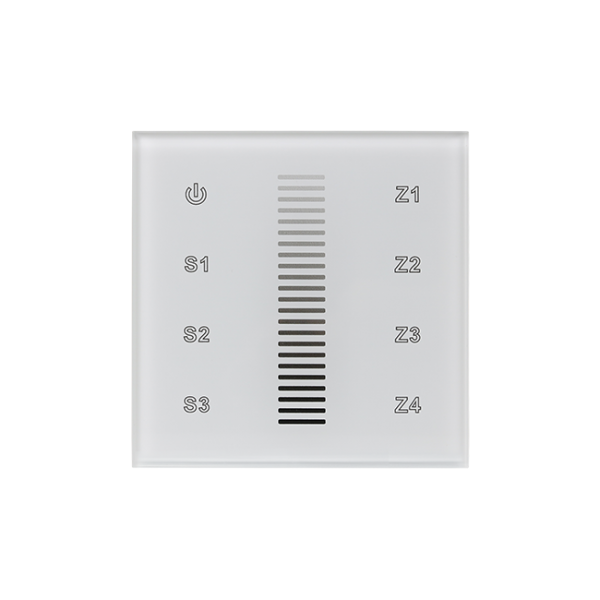

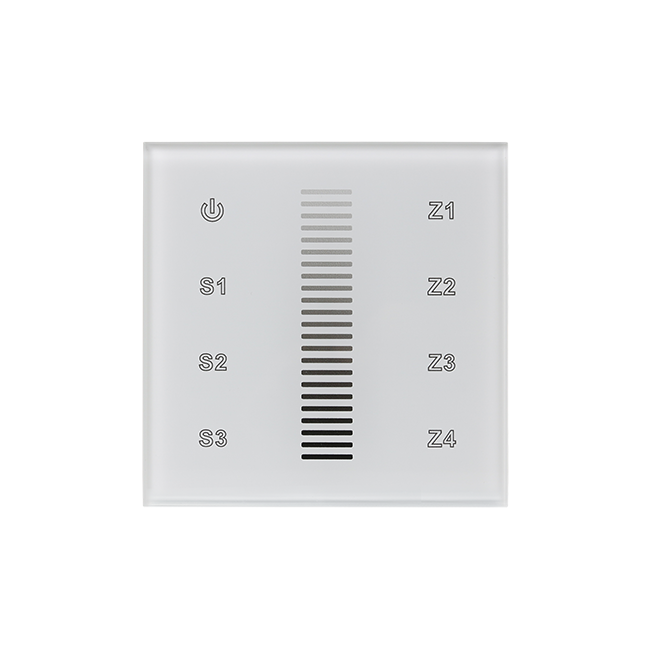

- DALI Single Color Touch Controller SR-2300TS-DIM-EU (Group & Scene Version)
Product Description
This DALI Single Color Touch Sensitive Controller has glass interface, and both white and black are available. This control complies to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation. Besides, this device enables to control 4 DALI groups and 3 DALI scenes, set start DALI group number and start DALI scene number to be controlled by rotary switches, and control all devices on DALI line via broadcast.
• Touch sensitive.
• Glass interface(white & black).
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation
• Enable to control 4 DALI groups and 3 DALI scenes.

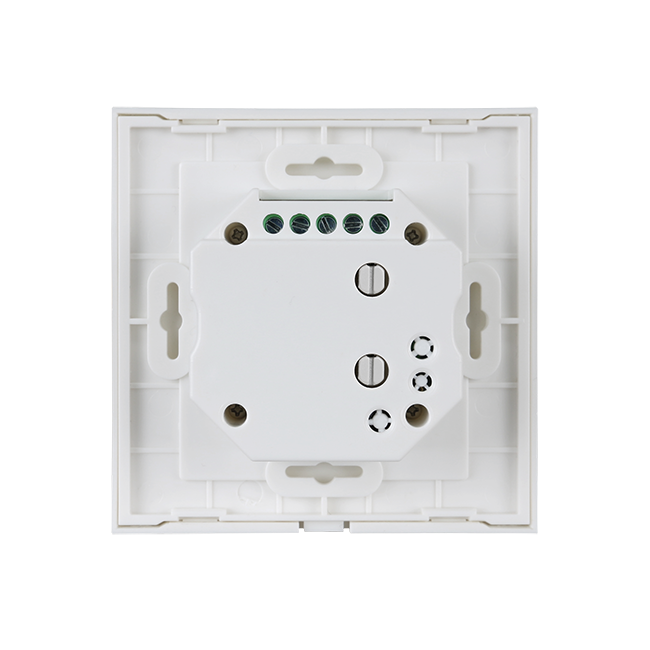

• Enable to set start DALI group number and start DALI scene number to be controlled by rotary switches.
• Enable to control all devices on DALI line via broadcast
Specifications
Part No. |
Power consumption |
Output Signal |
Size (L*W*H) |
Power Supply | DALI consumption |
---|---|---|---|---|---|
SR-2300TS-DIM-EU (Group & Scene Version) |
< 15 mA |
DALI signal |
86x86x29.1mm |
12-24VDC | 4mA |

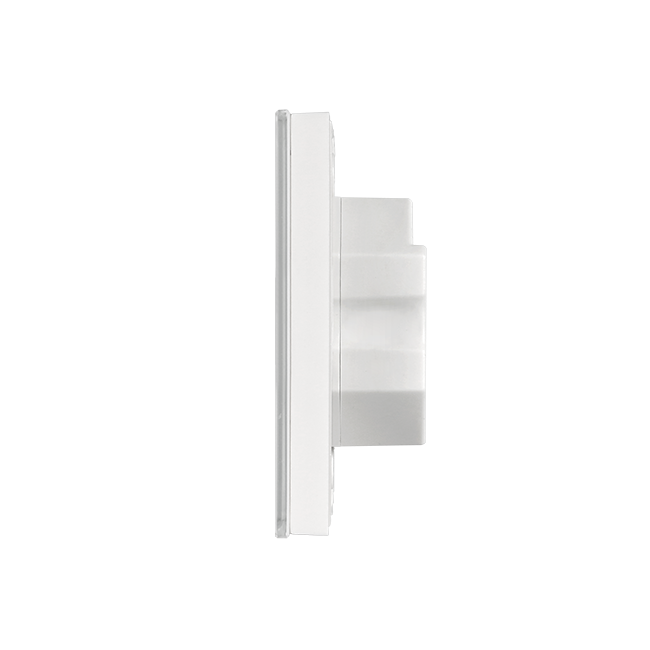

Product Dimension

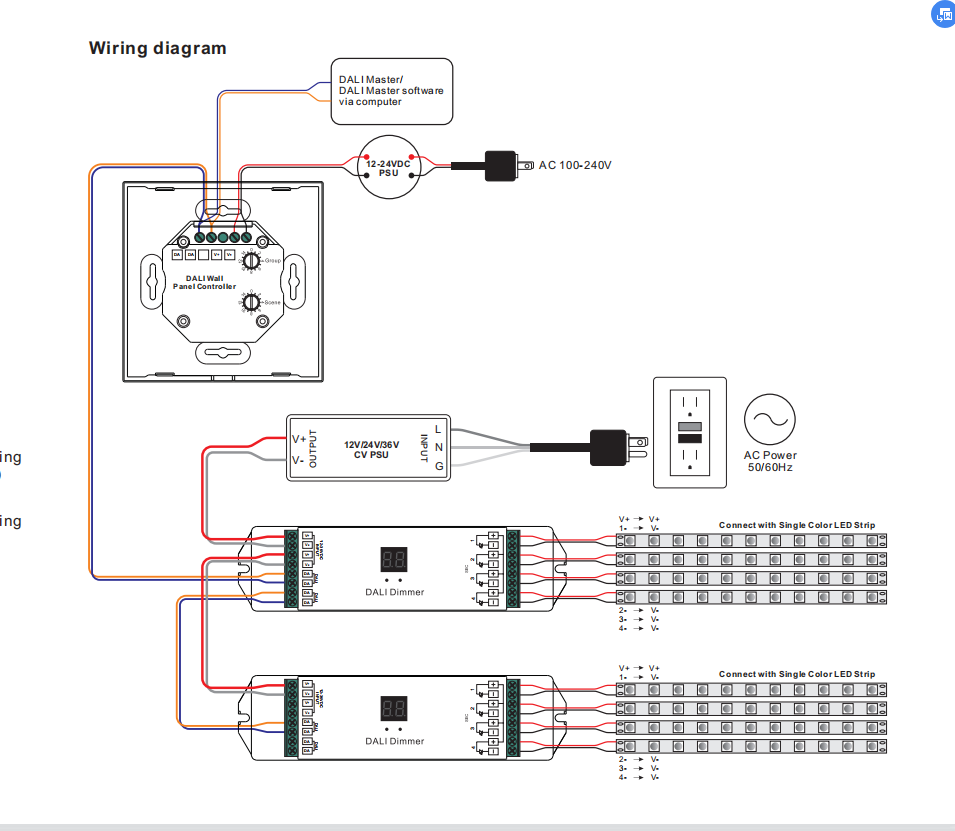

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2300TS-DIM-EU-Group-Scene-Version-Instruction.pdf
