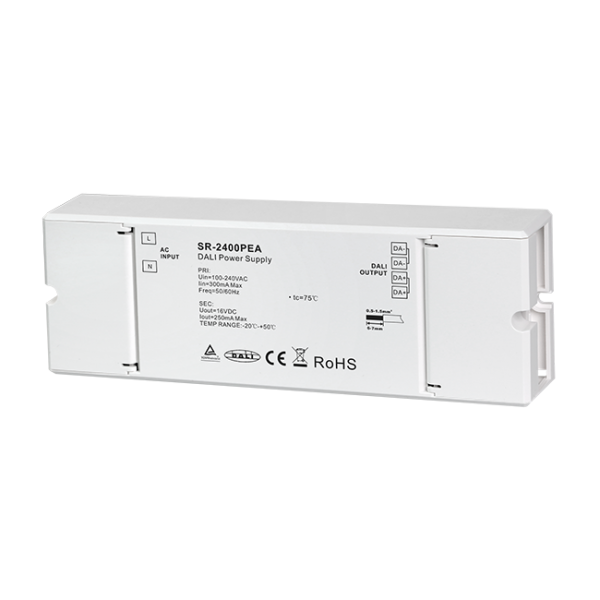

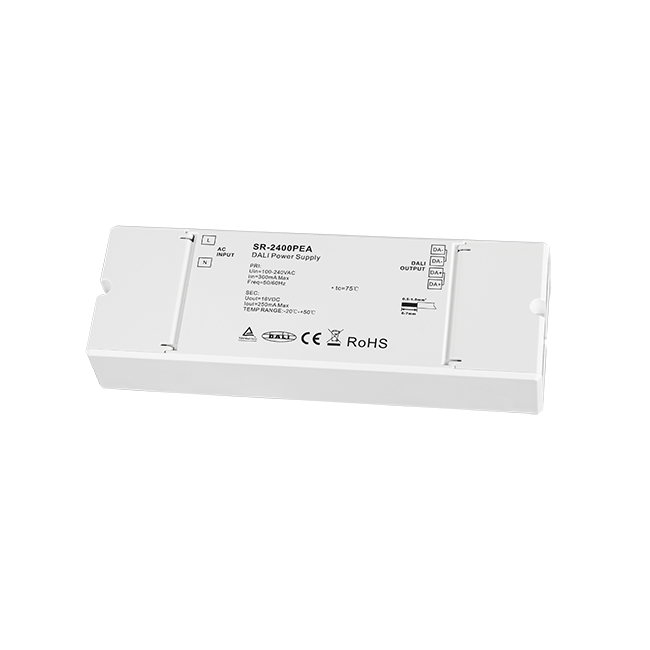

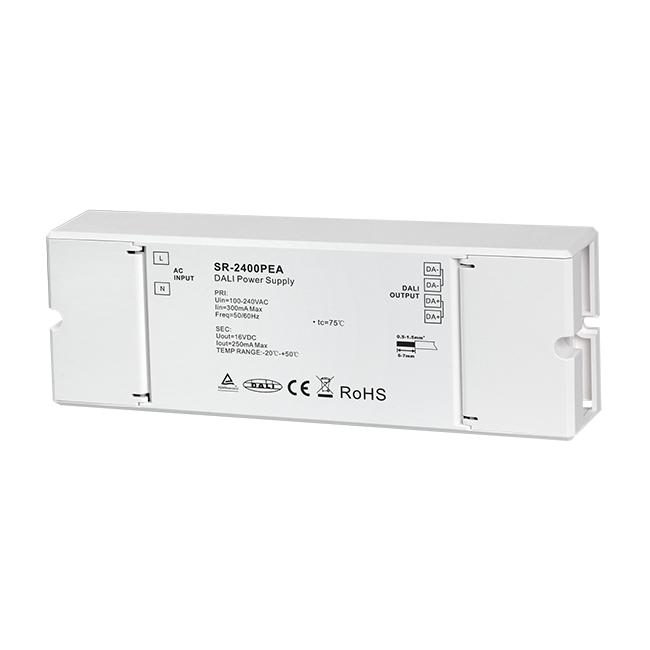

DALI Power Supply SR-2400PEA

SR-2400PEA is a universal DALI power supply designed with wide range input voltage 100-240VAC with 250mA output current to power DALI bus. The DALI power features high reliability and stability with over current protection.

Key Features

• Match all DALI system in the market
• DALI bus power supply
• Waterproof grade:IP20

Specifications

Input Voltage	Input Current	Output Voltage	Output Current	Dimension (LWH)
100-240VAC	Max. 89mA@100V Max. 53mA@230V	16VDC	230mA max	170x59x29mm

Input Voltage

Input Current

Output Voltage

Output Current

Dimension (L*W*H)

100-240VAC

Max. 89mA@100V

Max. 53mA@230V

16VDC

230mA max

170x59x29mm

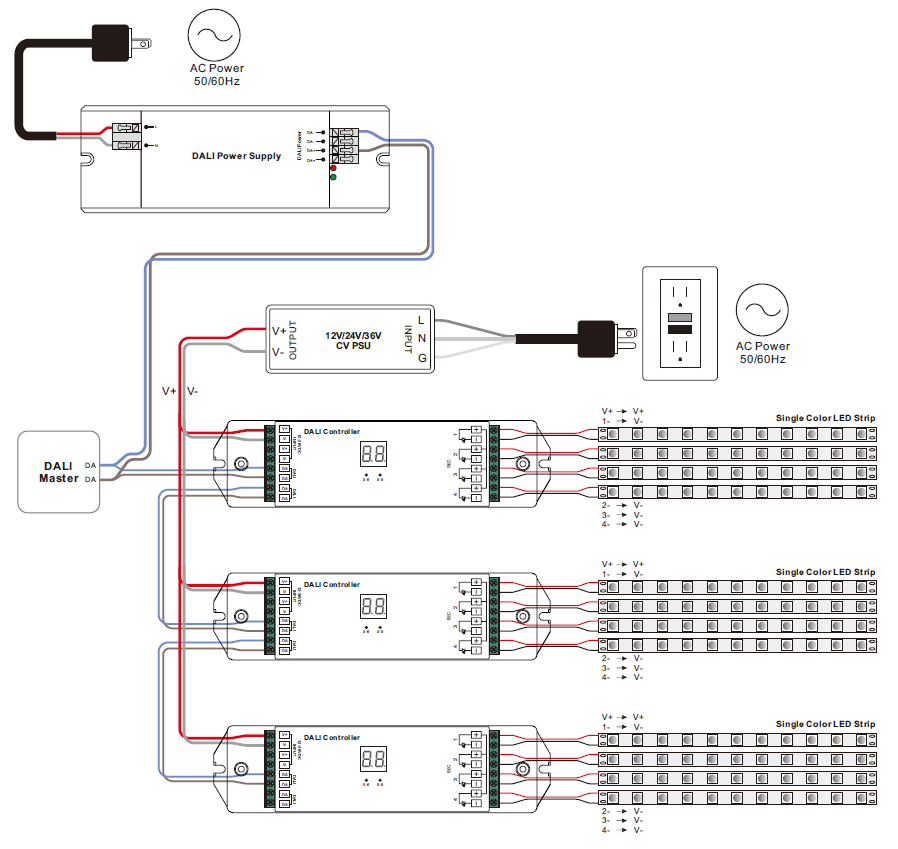

Wiring Diagram

Wiring Diagram

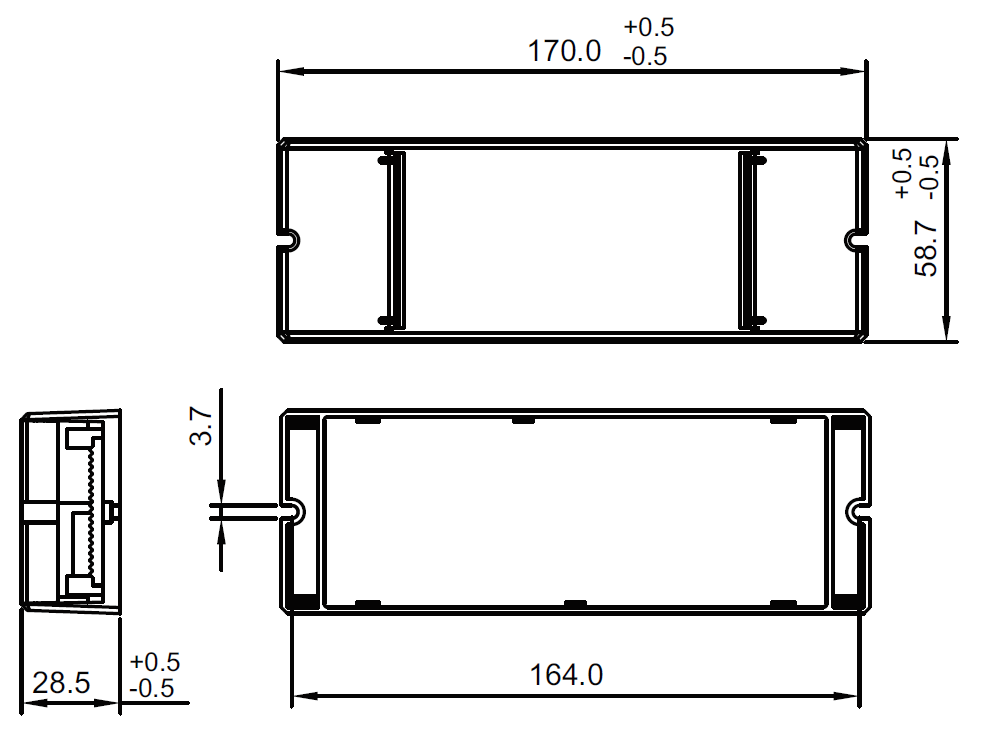

Product Dimension

Dimension

Download Center

To know further details of this product, please download the following user manual.

SR-2400PEA User Manual
