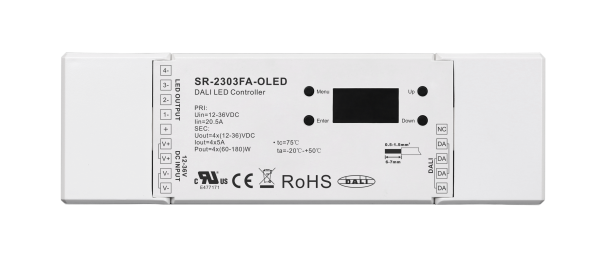

DALI Certified DT6 Dimmer with Built-in DALI Master Function SR-2303FA-OLED

SR-2303FA-OLED is the world first DALI certified DT6 dimmer with built-in DALI master function and OLED display for visible manual configuration. The LED dimmer is designed with 4 PWM outputs, and 4 outputs can be addressable and grouped individually or together. It enables to predefine and recall total 16 DALI scenes to 4 outputs individually or together. Logarithmic/linear dimming curve can be set to match sensitivity of human eyes. PWM output frequency can be set from 250Hz-30KHz which ensures ultra smooth dimming to 0.1% for specific applications.

It enables to set a Min. level for dimming between this level to Max. level. Output level of 4 PWM outputs can be set individually. DALI default parameters such as fade time, fade rate, power on level, system failure level can be set for 4 PWM outputs individually.

Key Features

• DALI Certified DT6 Dimmer, 4 Channels PWM Output
• TUV CE certified
• World 1st DALI Device with Built-in DALI Master Function
• OLED Display Interface , Easy & Fast Installation
• No DALI Master Required
• Cost & Time Saving than DALI USB Configuration
• In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
• DALI Address Quantity 1-4 Settable for 4 PWM outputs
• Enable to Address & Group 4 PWM outputs Individually
• Enable to Predefine & Recall 16 Scenes to 4 PWM outputs Individually
• Logarithmic/Linear Dimming Curve Settable, Match Sensitivity of Human Eyes
• Up to 30KHz PWM Frequency Settable, ultra smooth dimming to 0.1%
• Enable to set a Min. Level for Dimming between This Level to Max. Level
• Enable to Manually set Output Level for 4 PWM Outputs Individually
• Enable to set Fade Time, Power On Level, System Failure Level for 4 Outputs Individually
• Compatible with DALI System from Osram, Philips, Tridonic, Helvar, Lutron etc.
