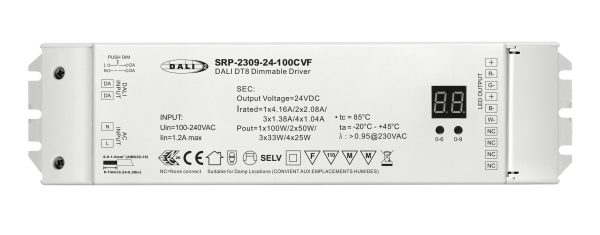

100W 4 Channels 24VDC DALI DT8 LED Constant Voltage Driver SRP-2309-24-100CVF

Product Description

SRP-2309-24-100CVF is a DALI-2 certified 100W LED driver with 4 parallel connected channels with 2 common anodes and 24VDC constant voltage output. It is designed with 100-240VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. TUV and ENEC approval ensure safe and reliable performance of this driver. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Key Features

• DALI-2 certified 100w LED driver
• TUV and ENEC approval
• Mains-powered control gear
• DALI bus current consumption < 2mA
• 4 channels parallel connected channels output with 2 common anodes, 24VDC constant voltage
• Class 1 power supply, full isolated plastic case
• Rubycon capacitors
• Built-in active PFC function
• High power factor and efficiency, PF > 0.9, Efficiency > 90%
• Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
• Supports DALI-2 input devices: Occupancy, light sensors and push buttons
• Enables to control single color LED lighting
• Fade time, system failure level, power on level configurable
• 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
• Smooth and deep dimming to 0.1% without flickering, no buzzing noise
• Error report function
• IP20 rating, suitable for indoor LED lighting applications
