Product Description

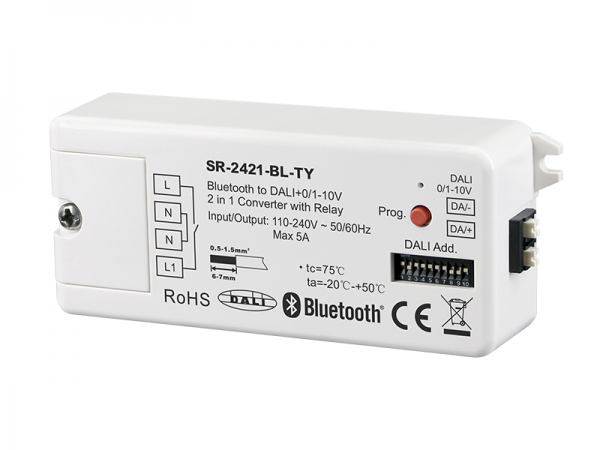

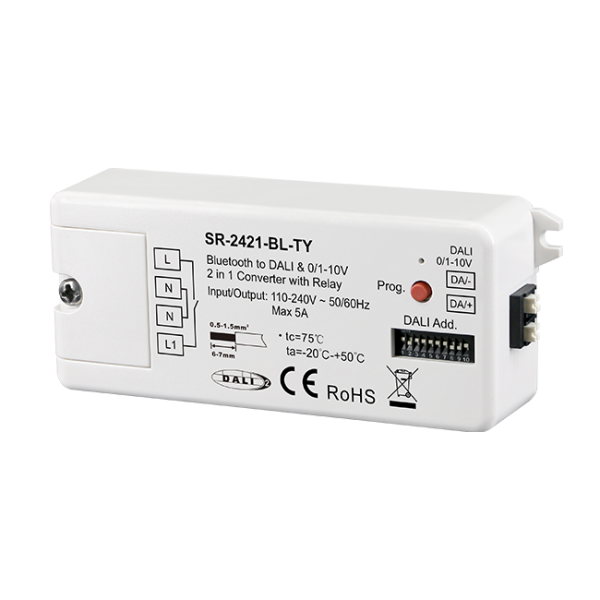

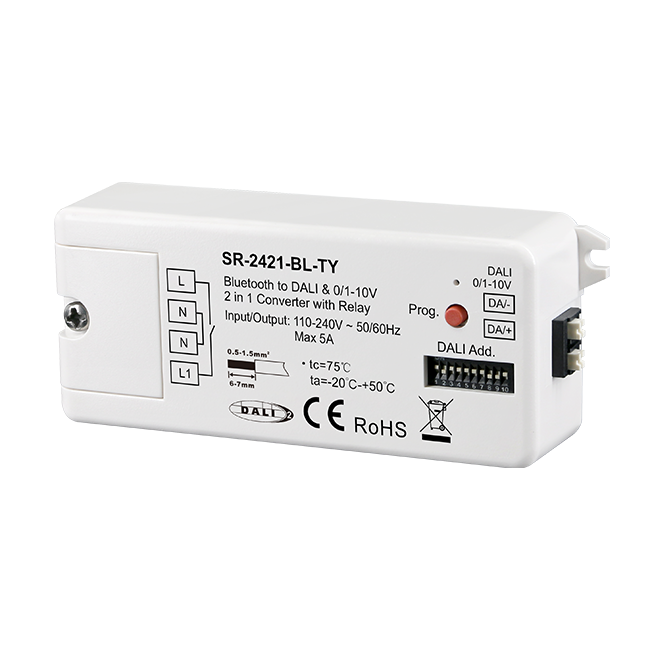

Based on Bluetooth mesh network, this Bluetooth to DALI+0/1-10V 2 in 1 converter is compatible with universal Bluetooth gateway. With Bluetooth signal input, DALI signal output to DALI line or 0/1-10V signal output, and 110-240VAC power input, this converter can supply control current to up to 25 DALI control gears. Moreover, DALI DT6 or DT8 device type can be selected by DIP switch under DALI mode. Its color control is according to DALI specifications of DT8, and its color type includes Tc, XY coordinates and RGBW, which can be selected by DIP switches. With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load, this device enables to select the DALI address (00-63) to be controlled by DIP switches, enables to select the DALI group (0-15) to be controlled by DIP switches, enable to control 1 DALI Group of devices or 1 DALI Address on DALI line, and enable to control all devices on DALI line via broadcast. There is built-in DALI bus power supply, and no extra DALI bus PS is required.
Key Features
• Bluetooth to DALI+0/1-10V 2 in 1 converter based on bluetooth mesh network
• Bluetooth signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
• With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load
• Compatible with universal bluetooth gateway
• DALI signal or 1-10V signal output selectable by DIP switch
• Built-in DALI bus power supply, no extra DALI bus PS required
• With max. 50mA DALI bus power current output
• To supply control current to up to 25 DALI control gears
• DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
• Color control according to DALI specifications of Device Type 8,
• Color type: Tc, XY coordinates, RGBW selectable by DIP switches
• DALI address control mode or group control mode selectable by DIP switch
• Enables to select the DALI address (00-63) to be controlled by DIP switches
• Enables to select the DALI group (0-15) to be controlled by DIP switches
• Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
• Enable to control all devices on DALI line via broadcast
• Waterproof grade: IP20
Specifications
| Part No. |
Max. Output Current |
Signal |
Size (L*W*H) |
Power Supply |
DALI PS |
|---|---|---|---|---|---|
|
SR-2421-BL-TY |
Incandescent: 5A LED: 1.6A |
Bluetooth 2.4GHz |
95x37x20mm |
110-240VAC | Max. 50mA |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2421-BL-TY-Instruction.pdf
