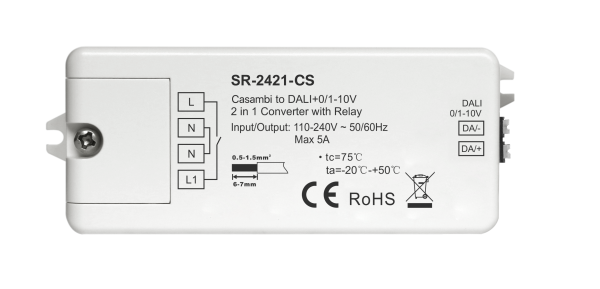

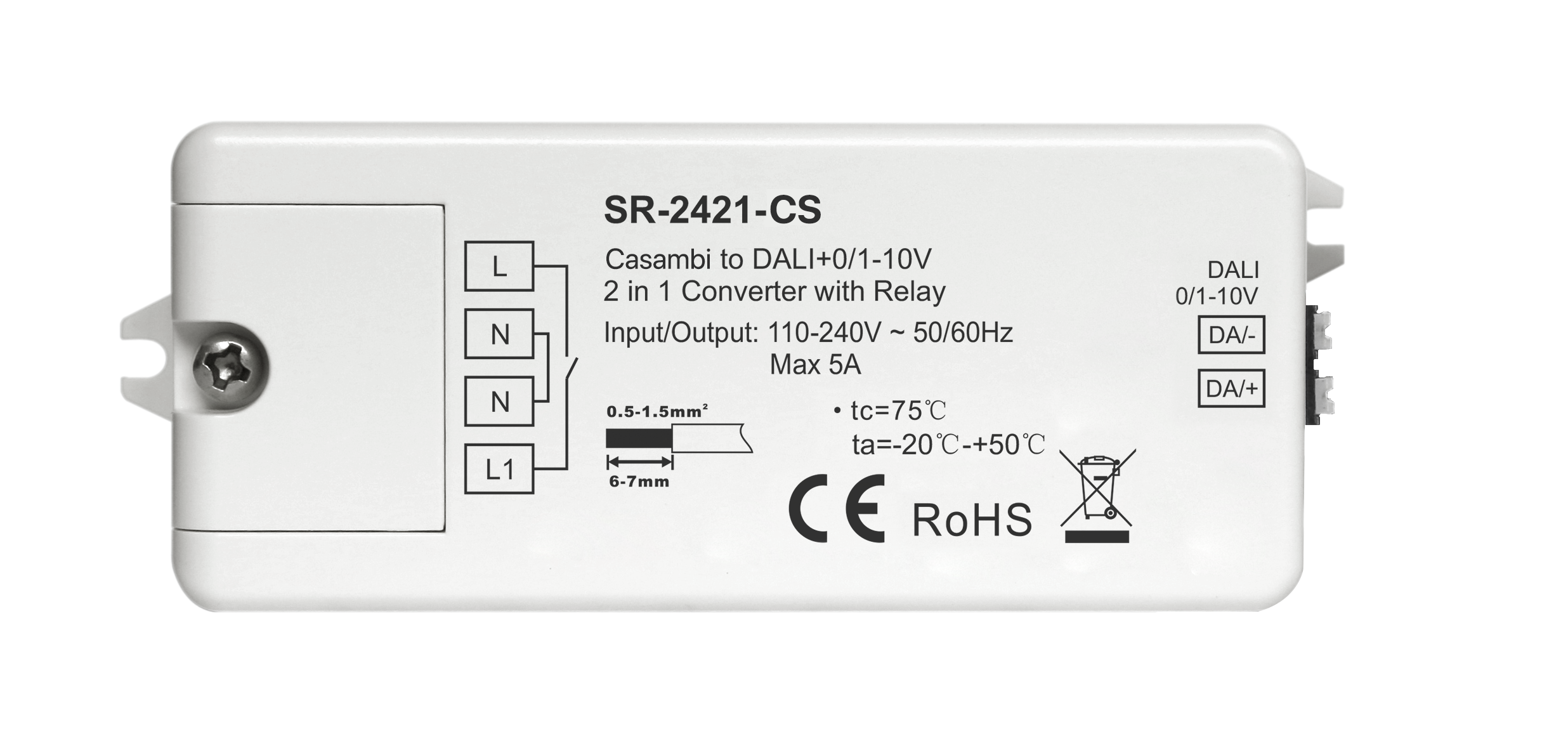

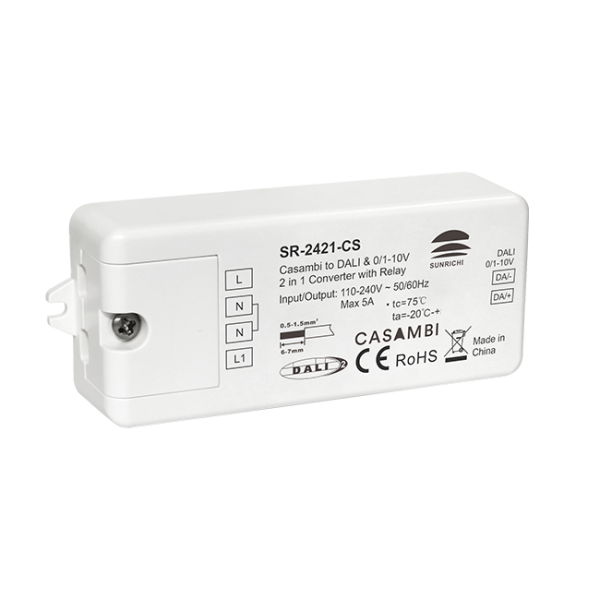

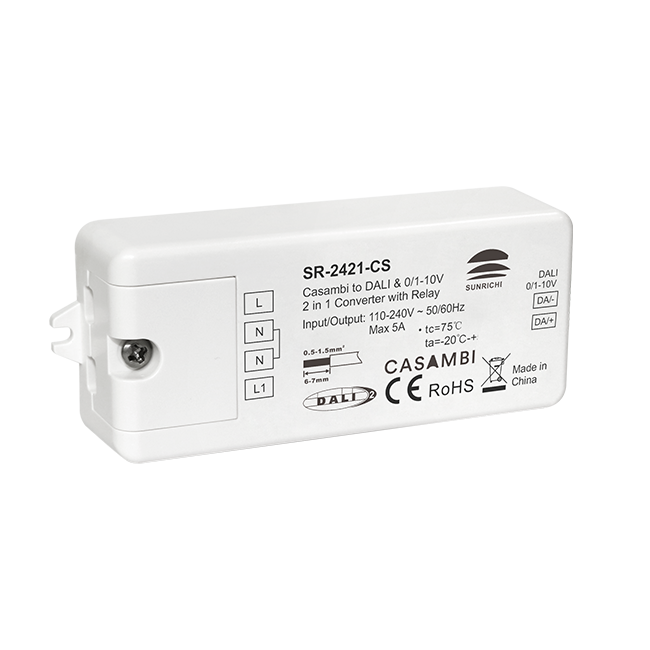

SR-2421-CS Casambi to DALI + 0/1-10V controller is designed as a standalone DALI and 0-10V controller with 50mA DALI bus current output and 20mA 0-10V current output. It can control DALI DT6, DALI DT8 TW, DALI DT8 XY, DALI DT8 RGBW, 0-10V LED drivers or luminaires. The control mode can be configured using Casambi APP. Under DALI control modes, it supports up to 25 DALI LED drivers and no need extra DALI bus power supply. Just using Casambi APP or wall switch to control DALI LED drivers and 0-10V LED drivers.
Key Features
• Casambi to DALI + 0/1-10V 2 in 1 converter, works with Casambi network.
• Casambi signal input, DALI output to DALI line or 0/1-10V signal output, 110-240VAC power input.
• With relay output, Max. 5A for traditional incandescent & HV halogen lamps, Max. 1.6A for LED load.
• Can be controlled by both Casambi APP and Casambi Wall Switches.
• DALI signal or 1-10V signal output selectable by Casambi APP.
• DALI DT6, DALI DT8 TW, DALI DT8 XY, DALI DT8 RGBW, 0-10V control modes configurable by Casambi APP.
• Built-in DALI bus power supply, no etra DALI bus power supply required.
• With Max. 50mA DALI bus power supply output.
• To supply control currect to up to 25 DALI control gears.
• Easy commissioning with Casambi APP.
Download Center
To know further details of this product, please download the following user manual.
SR-2421-CS User Manual
