Product Description

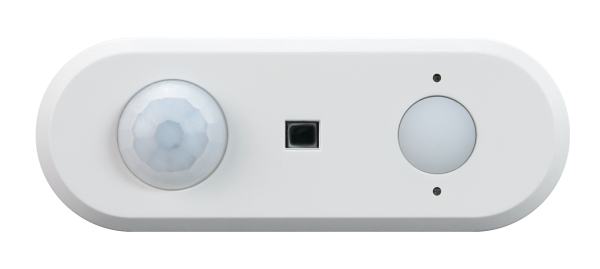

The fixture-Integrated sensor combines presence sensing, daylight harvesting, DALI dimming and Casambi radio technology into a small package that fits into various luminaires. When used with DALI LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.
Casambi Technology Explained
The Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node and, in such a way, creates a system with no single point of failure. In this kind of fully distributed architecture, any unit can go offline and catch up from others when they return back online.
Key Features
1. PIR motion detection+lux detection+DALI dimming output
2. DALI bus powered
3. Daylight harvesting
4. Zhaga 20
5. Works with DALI-2 D4i drivers or non-D4i drivers, broadcast control
Specifications
| Input Power |
DALI BUS | Input Signal |
Output Signal | Sensor Type | Detection Range |
|---|---|---|---|---|---|
| DALI BUS | Max. 30mA | Casambi Bluetooth | DALI | PIR Sensor | φ5m@2.5m |
Product Introduction
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-CS9035A-PIR-D User Manual
