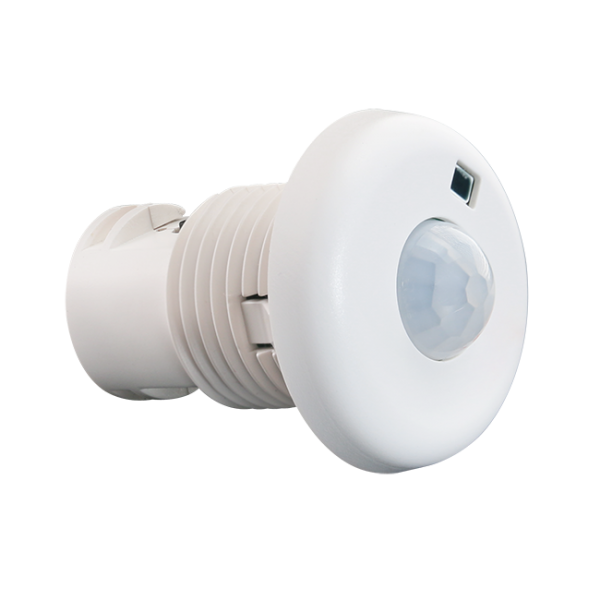

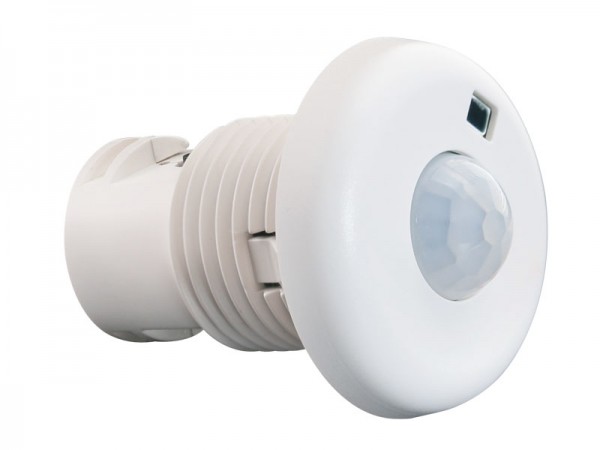

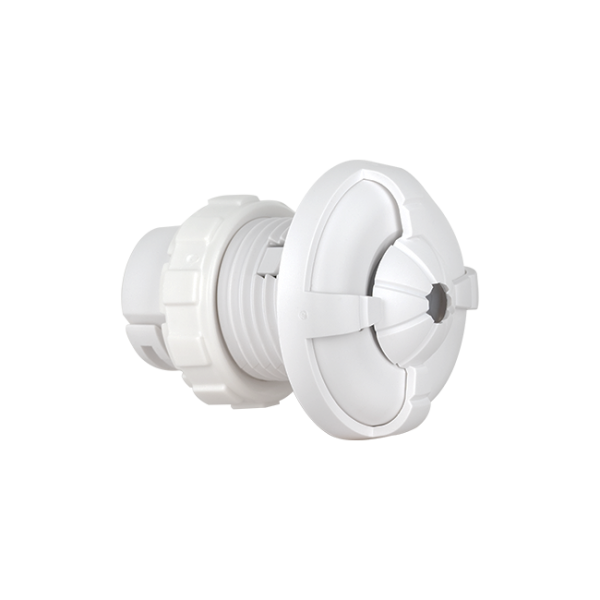

Casambi Enabled Fixture Integrated PIR+Daylight Sensor+0-10V Dimming SR-CS9032A-PIR-V

Product Description

The fixture-Integrated sensor combines motion sensing, daylight harvesting, 0-10V dimming and Casambi radio technology into a small package that fits into various luminaires. When used with 0-10V dim-to-off LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.

Casambi Technology Explained

The Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node and, in such a way, creates a system with no single point of failure. In this kind of fully distributed architecture, any unit can go offline and catch up from others when they return back online..

Key Features

• PIR motion detection

• Daylight harvesting

• Works with 0-10V dim-to-off LED drivers

• Autonomous sensor-based control

• Fixture mount installation

• Cost-effective solution for energy savings

• Energy code compliance

• Robust mesh network

Specifications

Input Voltage	Current Consumption	Input Signal	Output Signal	Sensor Type	Detection Range
12/24 VDC	< 30mA	Casambi bluetooth	0-10V	PIR sensor	φ5m@2.5m

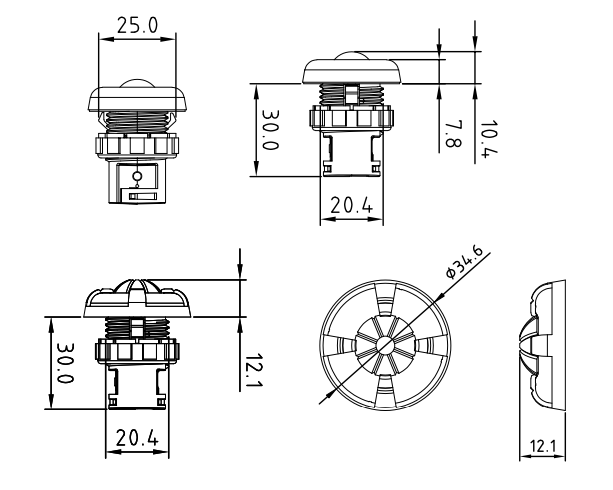

Product Dimension

Product Dimension

Wiring Diagram

Wiring Diagram

Download Center

To know further details of this product, please download the following user manual.

SR-CS9032A-PIR-V User Manual
