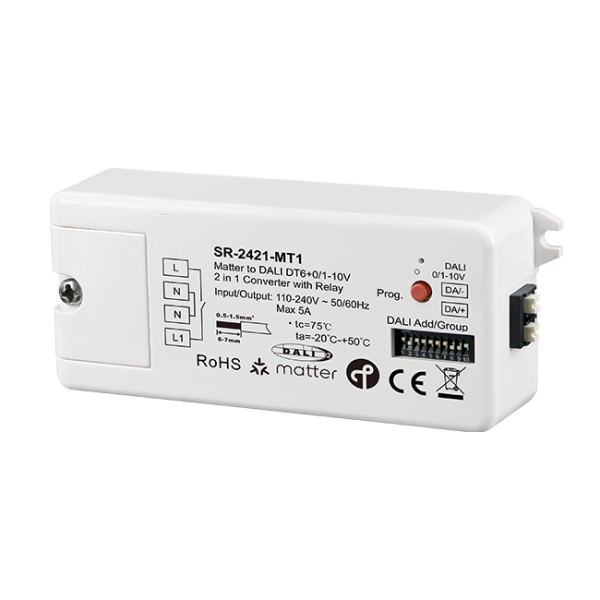

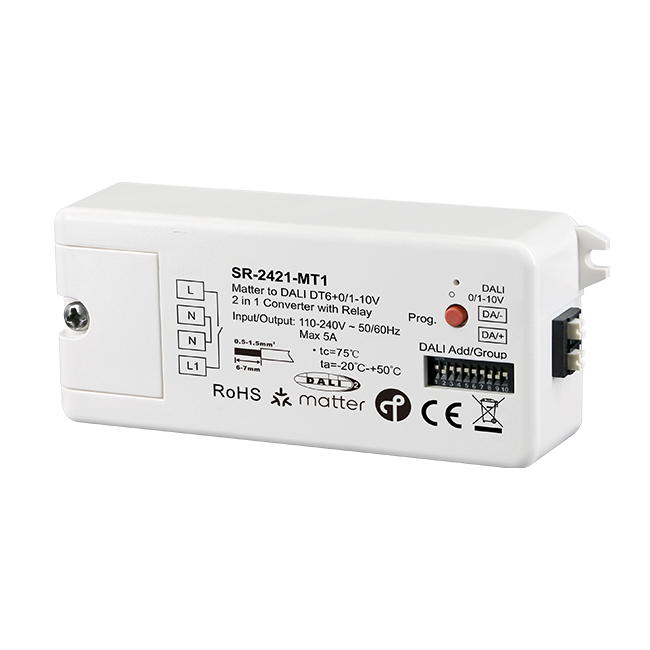

The Matter to DALI DT6 DIM+0/1-10V 2-in-1 Converter SR-2421-MT1 based on Thread provides seamless integration between Matter and DALI systems. It features a Matter signal input and outputs either DALI or 0/1-10V signals to control devices. The converter supports a wide power input range of 110-240VAC and includes a relay output, handling up to 5A for incandescent and halogen lamps, and 1.6A for LED loads. It is compatible with the universal Matter over Thread platform and offers convenient control via DIP switches for selecting DALI address or group, and choosing between DALI or 0/1-10V output. With built-in DALI bus power, it powers up to 25 DALI control gears and supports both DALI address and group control modes. The converter also allows broadcast control of all DALI devices on the line.
Features
• Matter + Zigbee to DALI DT6 DIM+0/1-10V 2 in 1 converter based on Thread
• Matter signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
• With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load
• Compatible with universal Matter over thread platform
• DALI signal or 1-10V signal output selectable by DIP switch
• Built-in DALI bus power supply, no extra DALI bus PS required
• With max. 50mA DALI bus power current output
• To supply control current to up to 25 DALI control gears
• DALI address control mode or group control mode selectable by DIP switch
• Enables to select the DALI address (00-63) to be controlled by DIP switches
• Enables to select the DALI group (0-15) to be controlled by DIP switches
• Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
• Enable to control all devices on DALI line via broadcast
• App control + touchlink remote control + green power kinetic switch control
• App control through Matter (e.g. Apple Home, Amazon Alexa, Google Home)
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa
• Waterproof grade: IP20
Download Center
To know further details of this product, please download the following user manual.
SR-2421-MT1 User Manual
