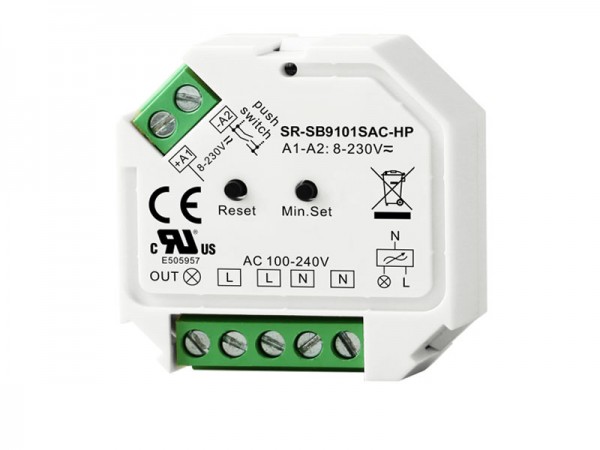

- Bluetooth AC Phase Dimmer Universal Bluetooth Dimmer Switch SR-SB9101SAC-HP
The SR-SB9101SAC-HP is an innovative AC phase dimmer with bluetooth mesh and RF control interface. The bluetooth dimmer is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The bluetooth dimmer switch is available with both leading edge dimming version and trailing edge dimming version for choosing. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness.
The phase dimmer is with flexible control options including bluetooth APP, RF remote and existing push switch. In addition, cloud control is ready for the bluetooth dimmer, which enables remote access. Thanks to the cloud, it can communicate and work with the mainstream popular smart home platforms such as Amazon Alexa, Google Assistant and Yandex Alisa, which enable users to control it through voice commands and free the hands.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-SB9101SAC-HP | 100-240VAC | 100-240VAC | 1.8A max. | 400W max. @ 220V | IncandescentHv-halogen lampsDimmable LED lamps | L45.5*W45*H20.3 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-SB9101SAC-HP-V2-Instruction.pdf
