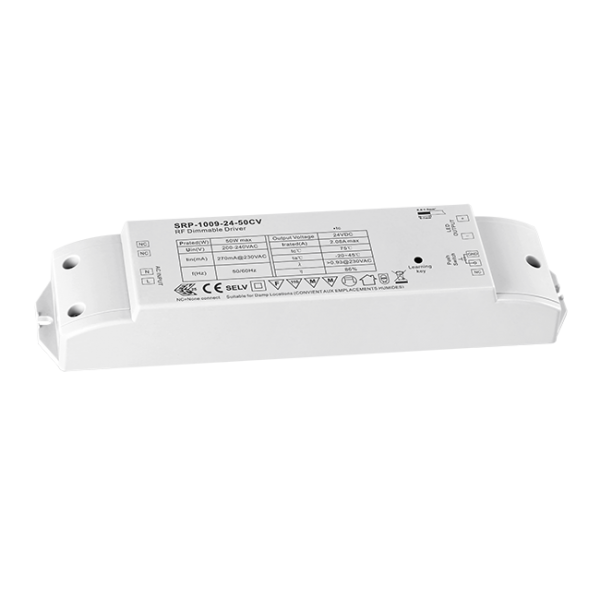

- 50W Constant Voltage RF LED Dimmable Driver SRP-1009-24-50CV
SRP-1009-24-50CV is a 50W Dimmable Constant Voltage LED Driver with 1 channel 12VDC or 24VDC output. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-1009-24-50CV | 200-240VAC | 12VDC | 50W | 4.16A | 50*210*32 |
SRP-1009-24-50CV | 200-240VAC | 24VDC | 50W | 2.08A | 50*210*32 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-1009-24-50CV User Manual
