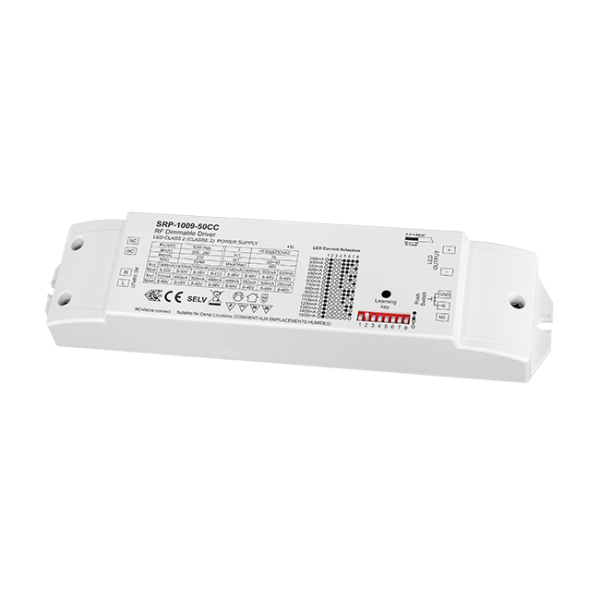

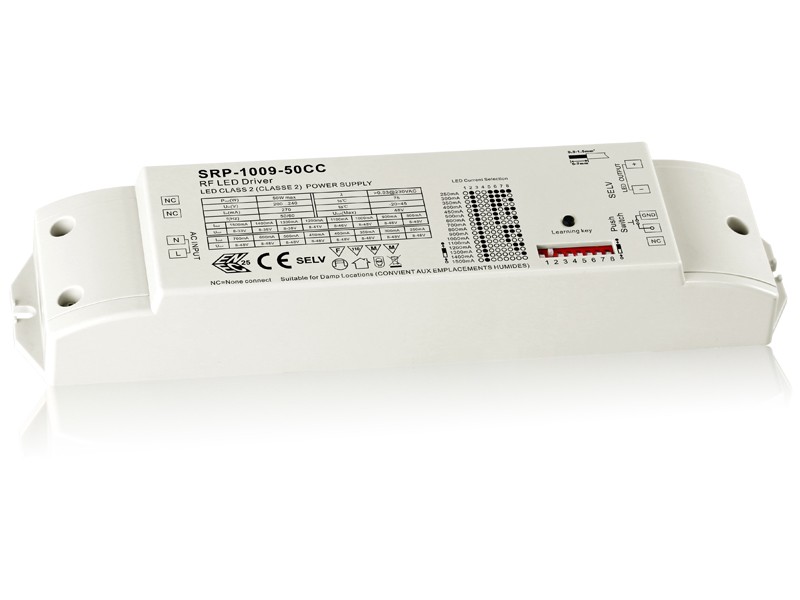

SRP-1009-50CC is a Dimmable 50w LED Driver with 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for constant current LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch.
Key Features
- Dimmable LED driver, Max. output power 50W
- 1 channel constant current output, 250mA ~ 1500mA Adjustable by DIP switches
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 87%
- RF control interface and can be compatible with a variety of SR-1009 series RF remotes
- Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
- To control single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Push dim function while being connected with a push switch
- IP20 rating, suitable for indoor LED lighting applications
- Radio frequency available: 869.5/434/916.5MHz
Download Center
To know further details of this product, please download the following user manual.
SRP-1009-50CC User Manual
