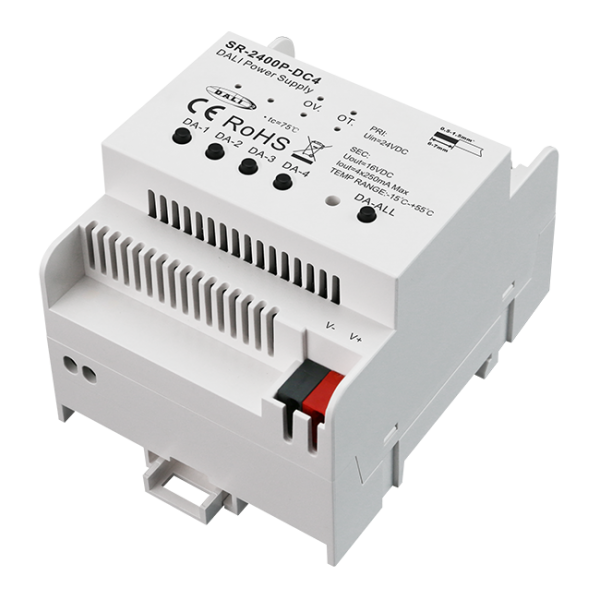

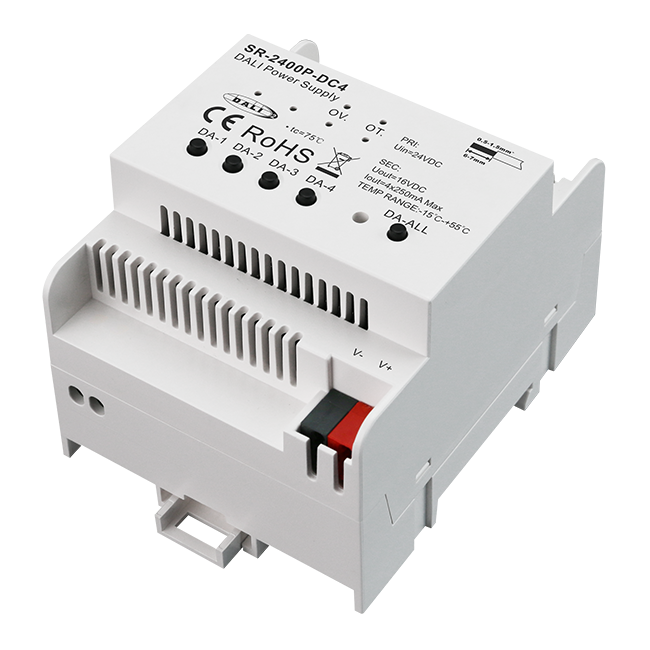

SR-2400P-DC4 is a universal DALI power supply designed with input voltage 24VDC with 4x250mA output current to power DALI bus. The DALI power features high reliability and stability with over current protection.
Key Features
• Match all DALI system in the market
• DALI bus power supply
• Waterproof grade:IP20
Specifications
| Part No. | Input Voltage | Output | Number of DALI Channels | Output Voltage | Output Current | Dimension (LxWxH) |
|---|---|---|---|---|---|---|
| SR-2400P-DC4 | 24VDC | DALI | 4 | 16VDC | 4x250mA | 90.1x72x66.4mm |

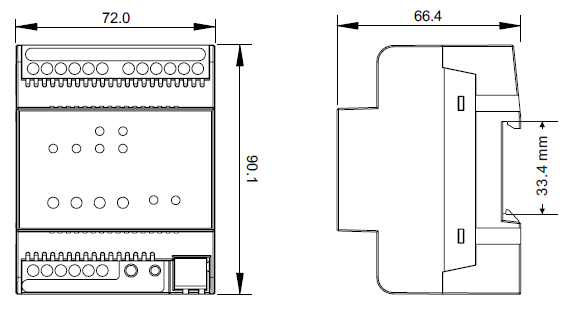

Product Dimension
Wiring Diagram
Coming soon
Download Center
To know further details of this product, please download the following user manual.
SR-2400P-DC4 User Manual
