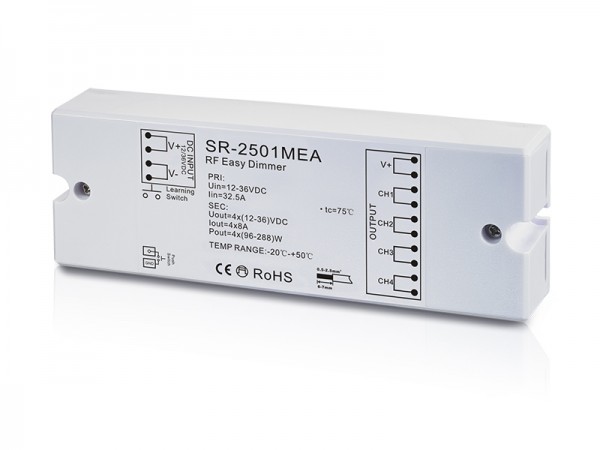

The RF controller SR-2501MEA is a 4 channel constant voltage RF receiver available in 12VDC, 24VDC and 36VDC output, which can be compatible with a variety of remotes to control brightness and color temperature of warm white and cold white LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. 256 level smooth brightness adjustment of each white enables the RF controller to achieve millions of color temperature. In addition, this controller can be compatible with push button to simplify the control.
Key Features
- Warm white and cold white dual color RF controller
- 4 channel, 8A per channel, constant voltage output available in 12VDC, 24VDC and 36VDC
- Full compatibility with a variety of dual color RF remotes and normal push button
- High reliability and stability
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Control distance can be over 20 meters
- 256 level smooth brightness adjustment enables the RF controller to achieve millions of color temperature
- Use with power repeater to expand the output power unlimitedly
- Can be controlled by push button
Download Center
To know further details of this product, please download the following user manual.
SR-2501MEA User Manual
