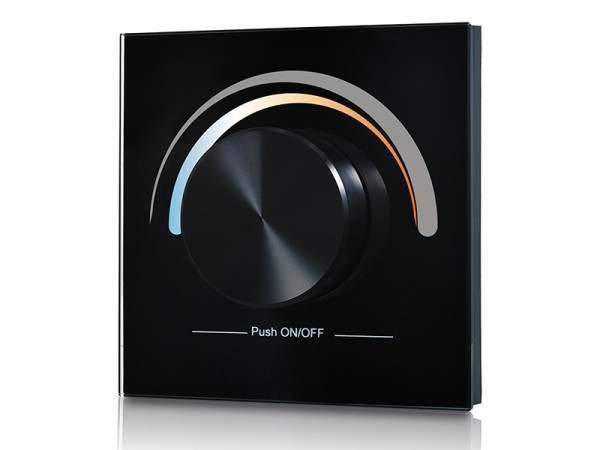

Rotary dual color LED controller SR-2805CCT is a RF remote control with switch, color temperature and brightness adjustment functions for warm white and cold white LEDs. The rotary dimmer controller features accurate and smooth color temperature adjustment as well as dim your lights from 0.1% to 100% without any flickering. Each controller can control 1 zone with endless receivers. Wall mounted version and table lying version are available and easy to install.
Key Features
- Reliable & stable switch and dimming control function, control range>20M.
- Battery in the remote is with long life span. It normally can use for 5 years.
- Switch on/off of lighting slowly, without any flash, meet the comfort of human eyes.
- Dimming range 0.1-100%.
- Enable switch from color dimming to adjust color temperature.
- Use with power repeater to expand the output power unlimitedly.
- Enable to control 1 zones separately, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes.
- Enable be dimmed, switch ON/OFF and adjust color temperature by push button after connecting receivers.
- Rotary adjustment, in-wall panel
- Italian/Australian, US in-wall size available.
Remote
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
SR-2805CCT | 3VDC | 434MHz/868MHz | 86*86*41 | RF Wireless |
SR-2805CCT(IT) | 3VDC | 434MHz/868MHz | 120*80*41 | RF Wireless |
SR-2805CCT(US) | 3VDC | 434MHz/868MHz | 75*120*41 | RF Wireless |
Compatible Receiver
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
SR-2501M | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501MEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502M | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503M | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
Installation for SR-2805CCT
Installation for SR-2805CCTUS
Receiver Wiring Diagram
