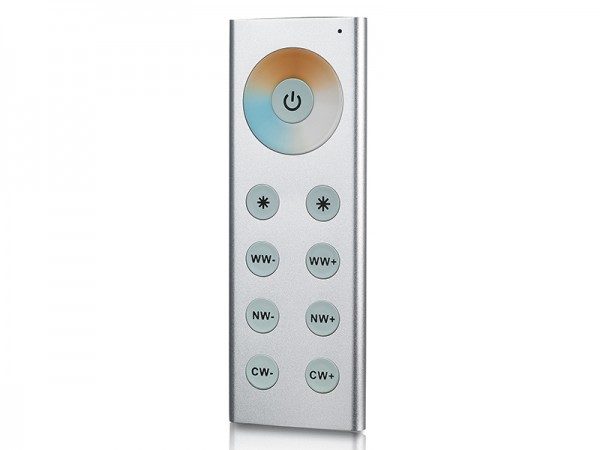

- RF Color Temperature Remote LED Controller SR-2804
RF variable color temperature remote LED dimmer controller SR-2804 is a remote control to adjust both color temperature and brightness of natural white, warm white and cold white LEDs. The ultra sensitive glass touch color wheel offers fast and accurate color control. 256 level brightness adjustment can be achieved for each white and totally millions of color are available. The SR-2804 is a high end remote controller designed with aluminum shell and usb charging port for recharging. Control distance of this variable color temperature controller is up to 20m. The remote led controller is compatible with easy RF receivers for CDW LED lighting (warm white, natural white, cool white) with 3 channels output and available in constant voltage version and constant current version for different types of LED lighting.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2804 | 3.6VDC | 434MHz/868MHz | 41*110.5*7 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501C | 12-36VDC | 3CH, 5A/CH | 180-540W | Constant Voltage | 46*178*18 |
SR-2501CEA | 12-36VDC | 3CH, 8A/CH | 180-864W | Constant Voltage | 58*168*28 |
SR-2502C | 12-36VDC | 3CH, 0.35A/CH | 12.6-37.8W | Constant Current | 46*178*18 |
SR-2503C | 12-36VDC | 3CH, 0.7A/CH | 25.2-75.6W | Constant Current | 46*178*18 |
Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2804 User Manual
