Product Description

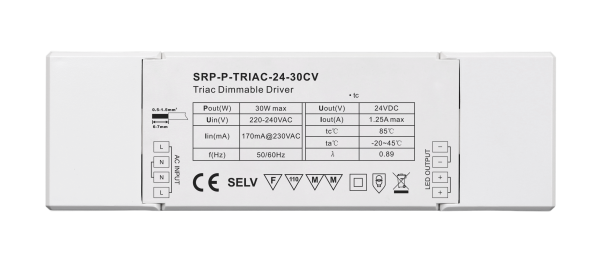

SRP-TRIAC-24-30CV is an ENEC approved 30W triac dimmable LED driver with 1 channel 24VDC constant voltage output.. It is designed with 220-240VAC input. The triac dimming driver is designed with DALI, Push, Triac, 0/1-10V 4 dimming interfaces in 1, which enables it to work with different control systems. The LED driver adopts amplitude dimming output instead of PWM output to ensure real flicker free. It enables smooth and deep dimming to 1% without flickering and buzzing noise. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC 62386-101, IEC 62386-102, IEC 62386-207, this DALI driver is compatible with most DALI systems in the market. The Triac dimming driver can be compatible with universal Triac dimmers. While selecting 0/1-10V interface, it is compatible with universal 0/1-10V dimmers.
Key Features
-
Dimmable LED driver with DALI/Push+Triac+0/1-10V dimming interfaces
-
In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
-
Built-in DALI-2 interface, DALI DT6 device
-
1 channel 24V constant voltage output, max. output power 30W
-
Enables to control single color LED lighting
-
Class Ⅱ power supply, full isolated plastic case
-
High power factor and efficiency
-
Compatible with universal DALI masters that support DT6 commands
-
Compatible with universal Triac dimmers
-
Compatible with universal 0/1-10V dimmers
-
PWM digital dimming output, smooth and deep dimming to 1%
-
IP20 rating, suitable for indoor LED lighting applications
-
5 years warranty
