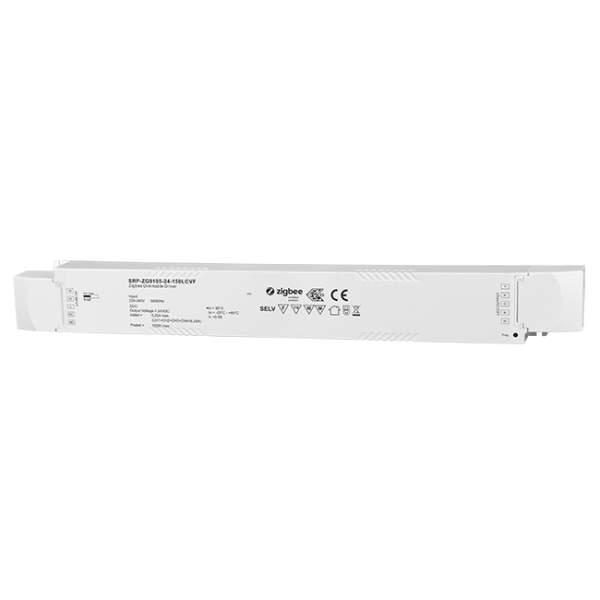

- 150W 24V ZigBee RGBW Constant Voltage LED Dimmable Driver SRP-ZG9105-24-150LCVF
SRP-ZG9105-24-150LCVF is a 150W Dimmable Constant Voltage LED Driver with 4 channel 24VDC output. It is designed with 220-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with ZigBee 3.0 control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver is compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZG9105-24-150LCVF | 220-240VAC | 24VDC | 150W |
Max. 6.25A
|
365.6*43*30
|
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZG9105-24-150LCVF User Manual
