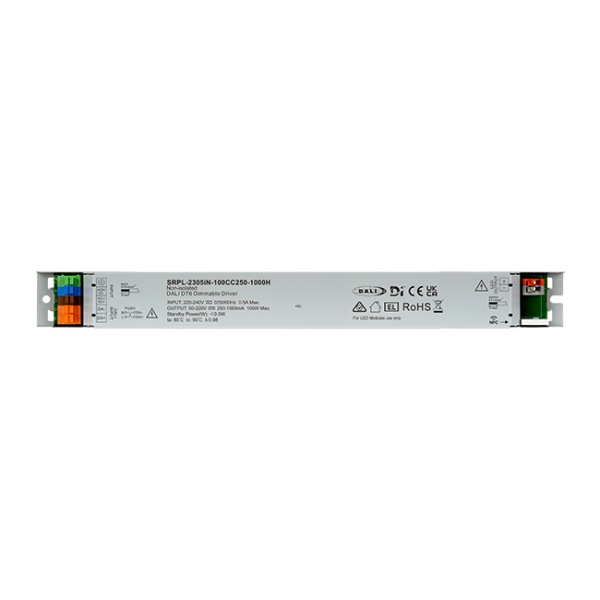

100W DALI D4i DT6 NFC LED Driver(Constant Current) SRPL-2305iN-100CC250-1000H

SRPL-2305iN-100CC250-1000H is a D4i DT6 certified long metal casing 100W Non-SELV NFC dimmable LED driver. It is designed with 1 channel constant current output with adjustable current from 250mA to 1000mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.

1 DALI address for 1 channel output are assigned by DALI Master controller automatically, or by NFC Programming devices. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT6 device
• Dimmable LED driver with linear metal housing. Max. output power 100W
• 250-1000mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• For luminaires of protection class I and protection class II
• High power factor and efficiency. Non-SELV rated driver
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT6 commands
• DALI-250/251/252/253 Enabled，DALI data inside.
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
