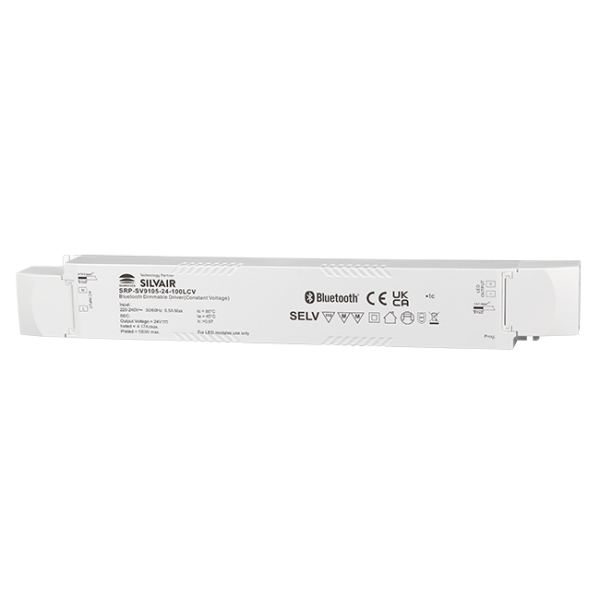

100W 24V BLE Dimmable LED Driver SRP-SV9105-24-100LCV

This compact LED driver supports Bluetooth® mesh networking for long-range, stable wireless control. It features a Class II fully isolated plastic case, built-in active PFC, high efficiency (>89%), and low standby power (<0.5W). Easily paired via the Silvair mobile app, it works seamlessly with kinetic energy switches and EnOcean switches (EWSSB, EWSDB). Typical indoor range is 20–25 meters with an onboard antenna. Built-in protection against over-temperature, overload, and over-voltage ensures safe and reliable operation.

Key Features

• Bluetooth® mesh dimmable LED driver
• Class II power supply, full isolated plastic case, built-in active PFC function
• PF > 0.95, Efficiency > 89%, standby power < 0.5W
• Controlled through “Silvair mobile app”, easy and quick paring
• Mesh network, which has much longer control distance, transmits received signals to neighboring devices
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• On-board antenna
• Over-temperature/Over-load/ Over-voltage protection.
• Waterproof grade: IP20
• 5 Years Warranty
