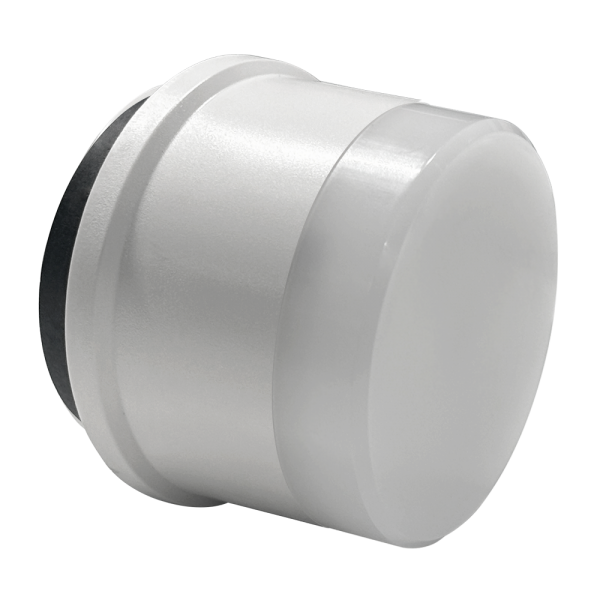

IP65 ZHAGA-BOOK 18 BLE DALI Sensor-less Node SR-SV9033A-D-BUS

This Bluetooth to DALI sensor controller is designed for Bluetooth® mesh networks, enabling long-range wireless communication by relaying signals between neighboring devices. It supports autonomous sensor-based control and allows broadcast control of all devices on the DALI line via a mobile application. Compatible with kinetic energy switches and EnOcean EWSSB/EWSDB switches, it features a ZHAGA Book 18 socket and convenient magnetic reset by touching the top of the sensor for 5 seconds. Built with an on-board antenna and IP65 waterproof rating, it is ideal for outdoor luminaires and comes with a 5-year warranty.

Key Features

• Bluetooth to DALI sensor controller, Bluetooth® mesh network
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on DALI line are broadcast controlled by mobile application
• Suppors our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• Autonomos sensor-based control
• ZHAGA Book 18 socket
• Available with Magnetic reset (touch the top part of sensor for 5 seconds)
• On-board antenna
• Waterproof grade: IP65, suitable for outdoor luminaries
• 5 years warranty

Specifications

Part No.	Input Voltage	Input Signal	Output Signal	DALI Consumption	Note
SR-SV9033A-D-BUS	DALI Bus	Silvair Bluetooth	0/1-10V	Max. 20mA	Signal Converter

Dimension

Dimension

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-SV9033A-D-BUS User Manual
