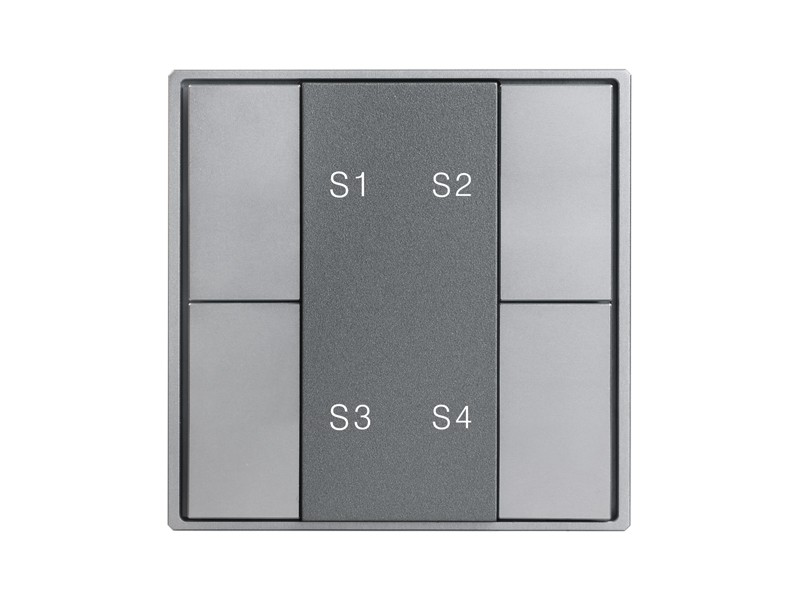

The SR-2422NK4-G1-S4 is a DALI scene controller that controls 4 scene addresses. The scenes to be controlled and the group of devices that the scenes are assigned to can be set manually set by 2 rotary switches on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. 4 predefined scenes can be assigned and recalled to the selected group. It is easy to use and no configuration by computer required. The DALI controller can be compatible with all universal DALI master controllers. Compatible with existing standard size EU size wall box, the DALI push button controller can be wall mounted easily with a mounting frame.
Key Features
- DALI push button scene controller
- Ultra slim and luxury design
- Material and finishing color can be customized
- With back lighting design, easy to find even in dark night
- DALI bus powered, no extra power supply required
- Each channel DALI bus can install multiple controllers
- 4 Button Design with Scene Control
- Control 4 Scene Addresses
- Control of All DALI Devices on the circuit through Broadcast
- Enables to select and control 1 DALI group from total 16 DALI groups
- Enables to select and control 4 DALI scenes from total 16 DALI scenes
- 4 predefined scenes can be assigned and recalled to the selected group
- Easy to Use, No Configuration by Computer Required
- Compatible with All Universal DALI Masters
- Easy Installation, Compatible with Existing Standard Size Wall Box
