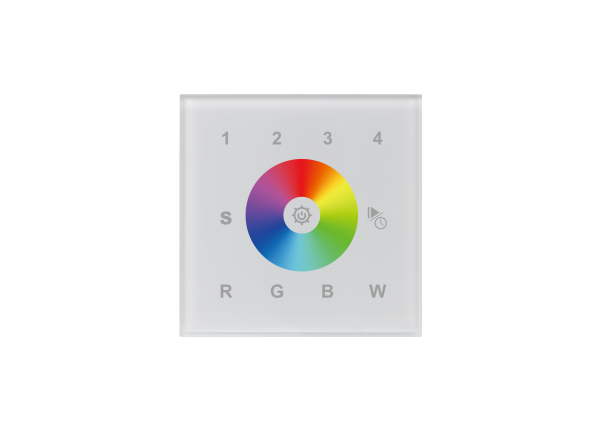

The DALI master SR-2300TR-G4-RGBW is a touch RGBW DALI controller which adopts high strength and ultra sensitive tempered glass panel with touch color wheel design to offer accurate and fast color tone adjustment and brightness adjustment functions to RGB+W LED lighting, the RGBW controllercomplies to IEC 62386-102, IEC 62386-207, IEC 62386-209 and can be compatible with DALI products from other international corporations. The DALI master can control up to 4 light zones (EU version). For DT6 version, each light zone can control 4 DALI addresses, and enables to set starting DALI address. For DT8 version, each light zone can control 1 DALI group, enables to set start DALI group number. The touch panel can save and recall 4 scenes (EU Version). 10 built-in color sequences are available. The RGBW DALI master controller can detect DALI bus and multiple controllers can be installed in one channel DALI bus. Compatible with most of our DALI slave controllers that are available in both constant voltage and constant current versions, the RGBW touch controller can control different types of LED lighting. 10 built-in color sequences are available.
This DALI controller is available with both 100-240VAC input and 12-24VDC input versions. AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. Max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
Key Features
- Touch control RGB DALI conroller.
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 , IEC 62386-209 and in compliance with DALI products from other international incorporation.
- Touch interface operation design, easy to use.
- With bus detective function, one channel DALI bus can install multiple controllers.
- 12-24VDC input and 100-240VAC input versions optional.
- AC input version with built-in 100mA DALI power supply to power up to 50 DALI ECG.
- AC input version can also be powered by DALI bus while not connected to AC mains.
- Max. 100 DALI ECG can be controlled by 4 AC version DALI panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
- Up to 4 light zones (EU version) or 3 light zones (US version) for dimming and color control. Each zone can be 4 DALI address (DT6) or 1 DALI group (DT8).
- Save and recall 4 scenes (EU Version).
- Supports DT8 Device Commands.
- Supports DT8 Color Type RGBWAF.
- Compatible with DALI Masters That Support DT8 Commands.
- Easy to Select and Control Designated DALI Groups (DT8) or DALI Addresses (DT6).
- Smooth & Fine RGB Color Adjustment.
- Supports Running Effects with Adjustable Speed.
- Compatible with Universal DALI DT8 Devices.
- 10 built-in color sequences.
- EU & US Size Available, Easy Installation Into Existing Wall Box.
Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|
| SR-2300TR-G4-RGBW-EU | 100-240VAC/12-24VDC | DALI Signal |
86x86x29.1
|
|---|
Product Dimension
Installation
DT6 Version Wiring Diagram
DT8 Version Wiring Diagram
