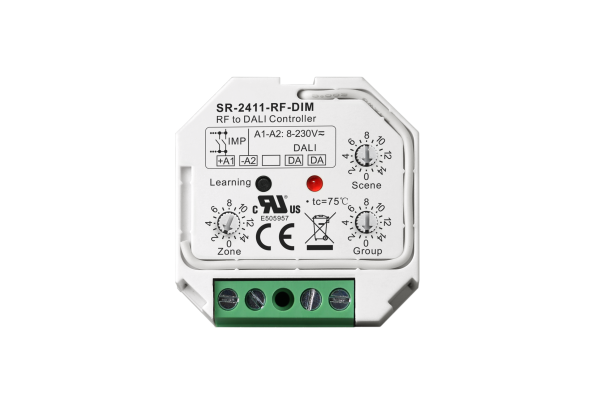

SR-2411-RF-DIM is a single color DALI group & scene controller that receives RF signal and can be controlled by RF remotes. The RF to DALI wireless controller converts the wireless signal to DALI. It is powered by DALI bus and no extra power supply required. In compliance with IEC 62386-102, IEC 62386-207, the DALI wireless controller can be compatible with DALI products from other international incorporations.
This controller enables to select and control designated DALI group and DALI secenes on DALI line. Rotary switches are used to set starting number of groups and scenes to be controlled.Total 16 groups and 16 scenes can be selected. It also can control all devices on DALI line via broadcast. Each DALI line can install multiple controllers for multi control points.
It is easy to pair the DALI wireless controller to a compatible RF remote with the learning key. It can be controlled by any zone of the paired RF remote by setting the zone rotary switch. Each controller can be paired to max. 8 different remotes.
Plus the group & scene controller is designed with PUSH interface, which enables it to be controlled by universal 8V-230V input single wire PUSH switch. It is also controllable while there is no RF remote.
While working with a WiFi-RF converter, the wireless receiver can also be WiFi controlled via APP installed on IOS or Android system.
Key Features
- RF to DALI wireless single color Group & Scene Controller
- Receives RF signal and outputs DALI signal to DALI line
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporations
- DALI Bus Powered
- Can be controlled by RF remotes and compatible with a variety of single color RF remotes
- Can be controlled by any zone of the paired RF remote by setting the zone rotary switch
- Can be controlled by universal 8V-230V input single wire PUSH switch
- Can be WiFi controlled while working with a WiFi-RF converter
- Enable to control 1 DALI Group of devices
- Enable to select and control designated DALI group (0-15)
- Enable to control all devices on DALI line via broadcast
- Enable to select and control designated DALI scenes (0-15)
- The number of DALI Scenes to be controlled depends on the paired RF remote
- Each DALI line can install multiple controllers for multi control points
