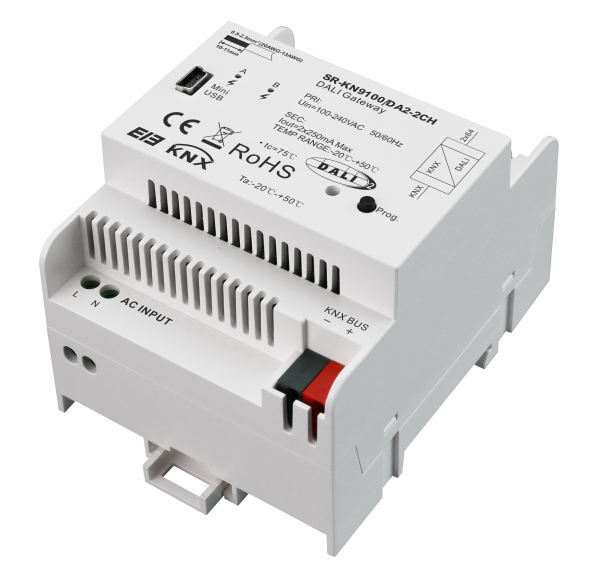

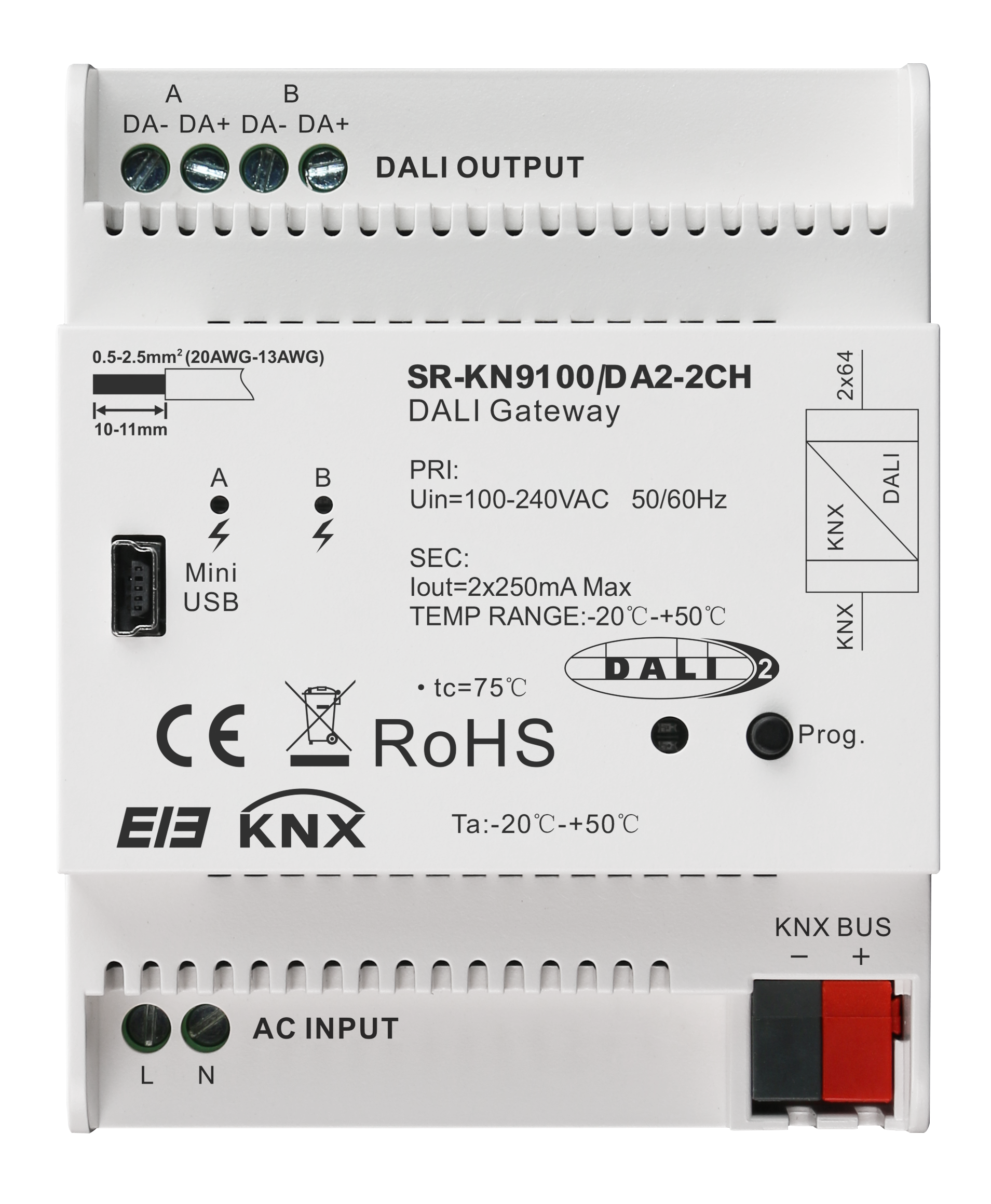

The KNX DALI Gateway is a DIN rail module for installation in the distribution board on a 35 mm mounting rail. It is a DALI single-master controller to DALI standard IEC 62386 Parts 101ed2 and 103ed1.The gateway is suitable for use with DALI and DALI-2 systems.It supports Device Type 6, Device Type 8 Tc, Device Type 8 XY coordinate, Device Type 8 RGB with DALI interfaces to IEC 62386 and their integration in a KNX building installation. The DALI gateway has 2 channels DALI output. Up to 64 DALI devices can be connected to each DALI output. DT6 and DT8 devices can all be connected to each DALI output in a mixed configuration. The lamps connected to each DALI channels are controlled via KNX using:broadcast;64 individual lamps;16 lighting groups;16 scenes
Key Features
> Integrates DALI into KNX system
> 2 channels DALI output
> Each DALI channel with 250mA DALI PS output
> No extra DALI PS required, simple wiring
> Supports all DALI DT6 & DT8 device types
> Mini USB port to connect to DALI PC software
> Programmable through ETS software
> DALI bus state monitor indicator
