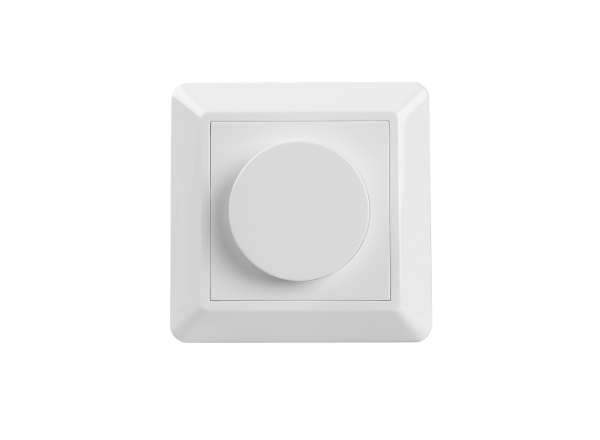

DALI MCU Digital Rotary Dimmer with Group Control SR-2400RG-DIM-A
Key Features
Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs
Powered by DALI bus while not connected to AC mains

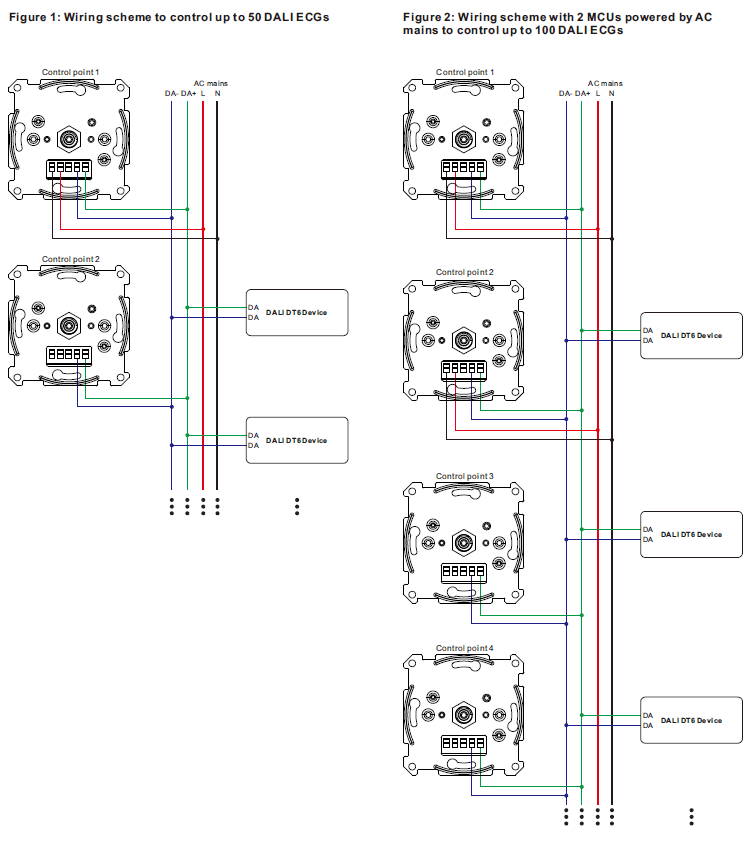

Max. 100 DALI ECGs on a DALI line can be controlled by 4 MCUs via broadcast (2 by AC mains, 2 by DALI bus).
Enables to select and control 1 DALI Group from total 16 Groups

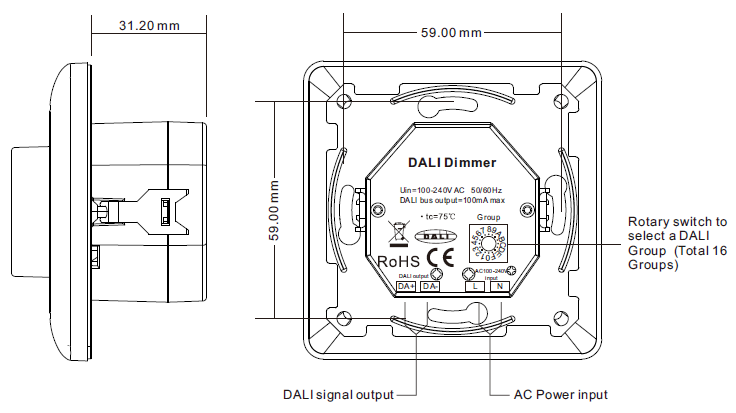

Enables to set the DALI group number (0-15) to be controlled by rotary switch on the back.
Supports DALI DT6 devices
Enables to set and delete a minimum dimming level
