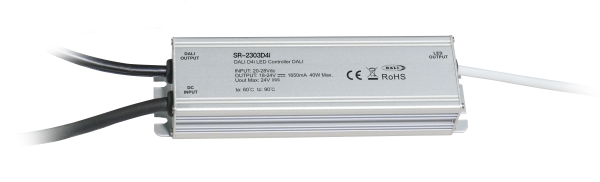

Compact DALI-2 LED driver compliant with IEC 62386-101/102/207 standards. Features one DALI address, PWM output, and built-in 50mA DALI bus power. Factory-set output current from 500–1650mA. Equipped with a boost circuit for stable operation under fluctuating voltage and IP67 waterproof protection for reliable outdoor performance.
Key Features
• Built-in DALI-2 interface, DALI DT6 device
• DC20-28VDC input & DC20-28VDC output
• 1 DALI address input, 1 channel PWM output
• Built-in 50mA DALI bus power
• Output current 500-1650mA can be set in factory
• Built-in boost circuit allows the controller to operate normally even when the battery voltage is unstable.
• Quick connector for easy wiring.
• IP67 waterproof grade
Specifications
|
Input |
Output | Output Current | Output DALI Bus Power |
Output | Remarks | Working Temperature | Product Size |
|---|---|---|---|---|---|---|---|
| 20-28VDC | 18-24VDC |
500-1650mA settable | 50mA | 40W Max. | Constant Current | -35℃ - 65℃ | 154.4x42.2x29mm |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2303D4i User Manual
