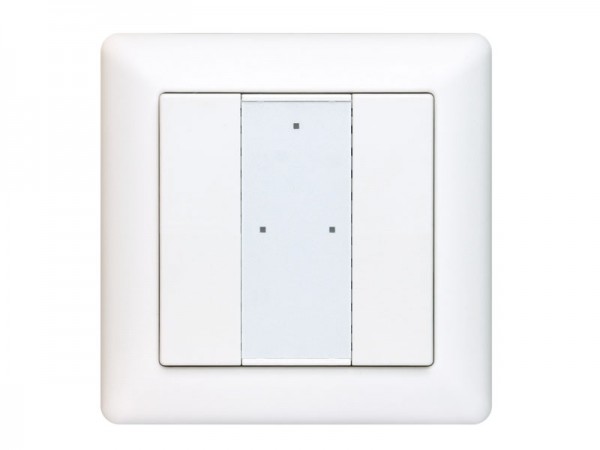

- DALI-2 Certified 2 Key Push Button Wall Switch SR-2422K2-DA2
The wall switch SR-2422K2-DA2 is industry first DALI-2 certified DALI-2 control device with 2 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. The input device supports feedback functionality and provides 4 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.
This DALI-2 push button is designed with standard 55mm frame, and can be compatible with universal 55mm frames.
Click SR-2422K2-DA2 DALI-2 Certification Link from DiiA official website to check the wall switch certification details.
Key Features
Part No. | Typ. DALI Consumption | Max. DALI Consumption | No. of Instance for Control Device | No. of Feedback LED | Dimension (mm) |
---|---|---|---|---|---|
SR-2422K2-DA2 | 2mA | 10mA | 2 programmable push buttons | 4 programmable LEDs | 71.2*71.2*13 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2422K2-DA2 User Manual
