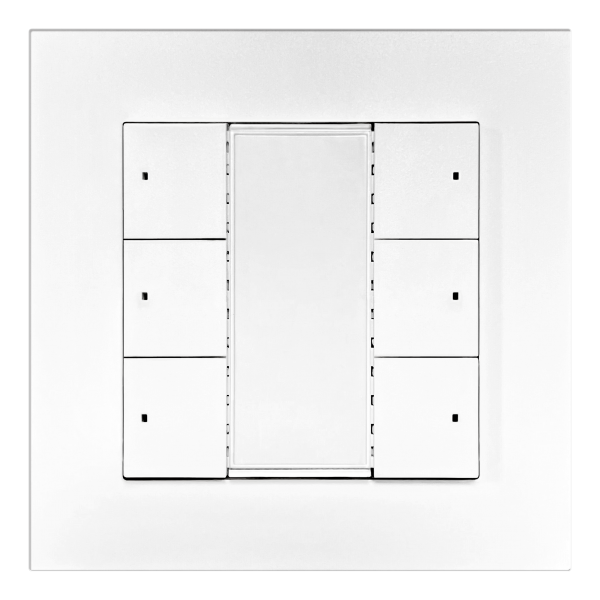

The wall switch SR-2422K6-DA2-WSK is industry first DALI-2 certified DALI-2 control device with 6 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. The input device supports feedback functionality and provides 12 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.
This DALI-2 push button is designed with standard 55mm frame, and can be compatible with universal 55mm frames.
Key Features
- DALI-2 Certfied Input Device
- DALI-2 control device with 6 push buttons
- According to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
- Supports feedback functionality, provides 12 LEDs
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI bus powered, no extra power supply required
- Easy configuration via DALI-2 compliant central controller USB interface
- Easy installation, compatible with universal 55mm frames
