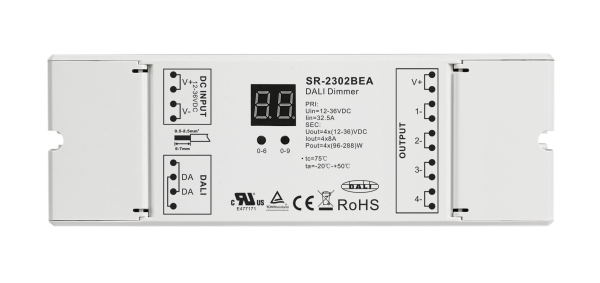

- Constant Voltage DALI Dimmer SR-2302BEA
The DALI Dimmer SR-2302BEA is a constant voltage dimming controller with 4 channel, 8A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2302BEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2302BEA User Manual
