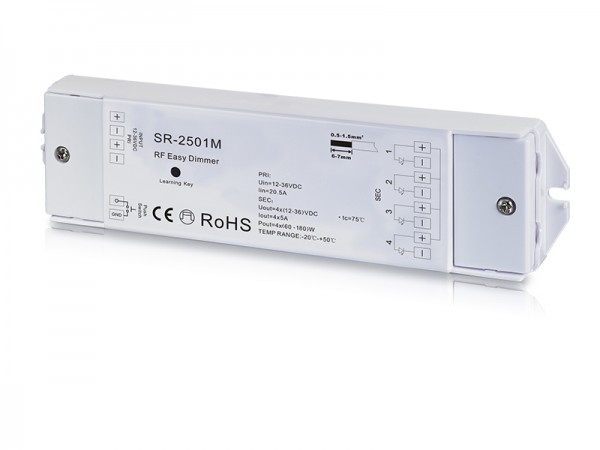

- Constant Voltage 4 Channel Dual Color RF Controller SR-2501M
The RF controller SR-2501M is a dual color constant voltage RF receiver with 4 channel, 5A per channel output, and available in 12VDC, 24VDC and 36VDC output, which can be compatible with a variety of remotes to control brightness and color temperature of warm white and cold white LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. 256 level smooth brightness adjustment of each white enables the RF controller to achieve millions of color temperature. In addition, this controller can be compatible with push button to simplify the control.
Key Features
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501M | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2501M User Manual
