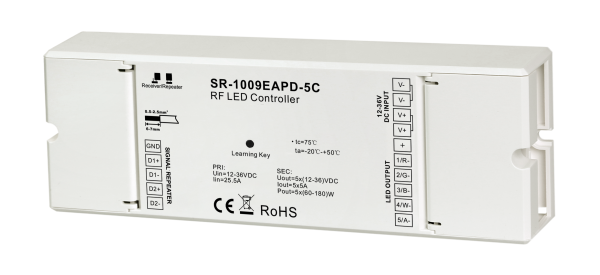

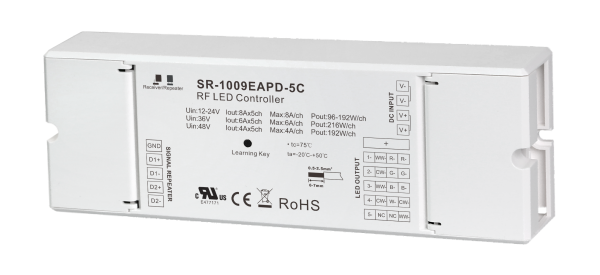

5CH 5x5A Constant Volt RF LED Controller with Receiver+Repeater Mode SR-1009EAPD-5C

5CH DC-DC CV LED Controller

Input Volt: 12-36VDC

Output: 5x5A

To match all the RF remote controls in 1009 system

with Receiver + Repeater mode

Specifications

Part No.	Input Voltage	Output Current	Output Power	Output type	Dimension (LxWxH)
SR-1009EAPD-5C	12-48VDC	Max. 8A/CH@12V/24V Max. 6A/CH@36V Max. 4A/CH@48V	Max. 96W/CH@12V Max. 192W/CH@24V Max. 216W/CH@36V Max. 192W/CH@48V	Constant Voltage	170x59x29mm

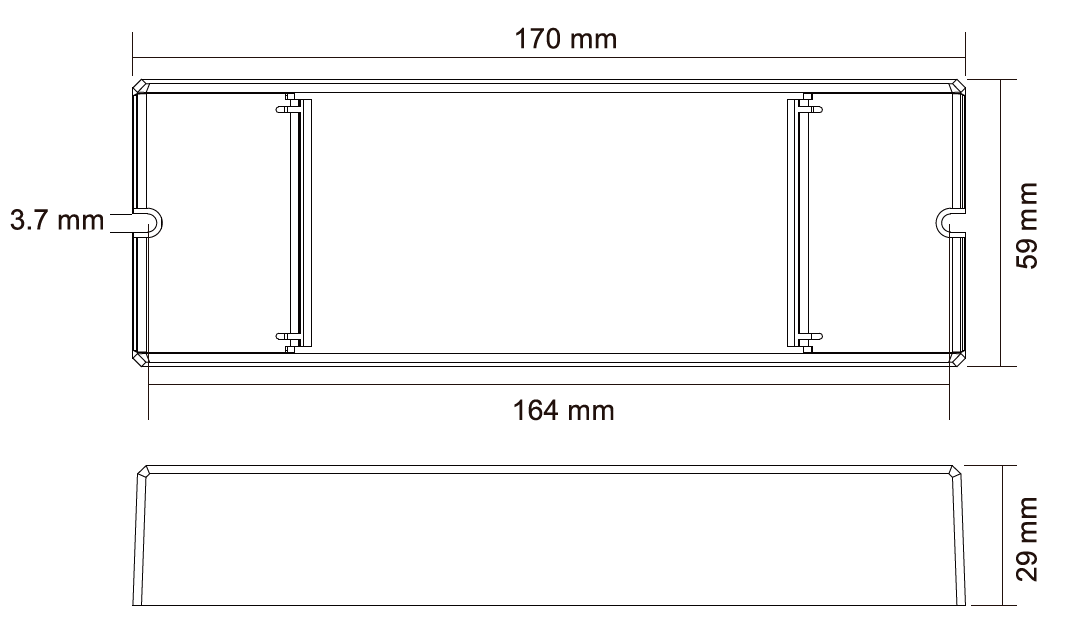

Product Dimension

Product Dimension

SR-1009EAPD-5C

Download Center

To know further details of this product, please download the following user manual.

SR-1009EAPD-5C User Manual
