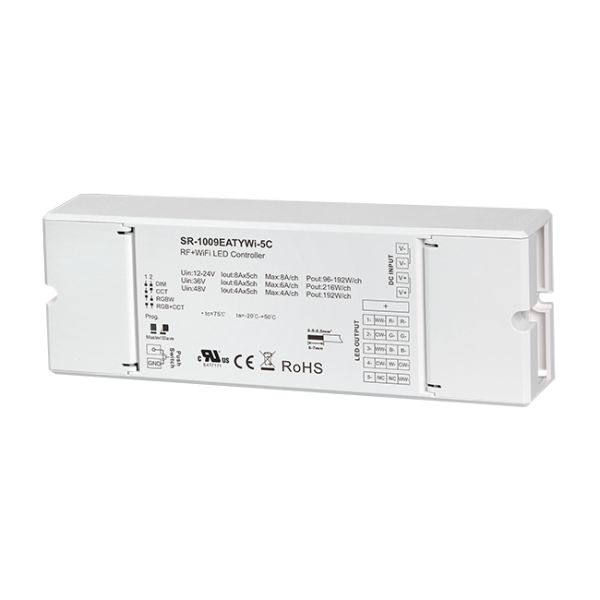

- 4 in 1 RF+WiFi+Push Dim LED Controller SR-1009EATYWi-5C
Product Description
With 5-channel 12/24V/36V/48V constant voltage output and max. 8A output per channel, this RF+WiFi LED controller is compatible with universal legacy RF remotes. Its RF frequency is 434/869.6/916.5MHz, and its waterproof grade is IP20. Do not install with power applied to device, and do not expose the device to moisture.
• 4 in 1 RF+WiFi+Push Dim LED controller
• 5 channels 12/24V/36V/48V constant voltage output
• Max. 8A output per channel
• Enables to set the device type via DIP switches
• 4 device types are available for setting: DIM, CCT, RGBW, RGB+CCT
• Can be controlled through Tuya smart APP
• Cloud control enabled based on Tuya platform
• Voice control enabled, can be controlled through Amazon Alexa & Google Assistant
• Local control available through RF remotes even without WiFi network
• Sub-1GHz RF frequency: 434/869.6/916.5MHz
• Compatible with universal legacy RF remotest
• With push dim function, can be controlled through existing push switches even without WiFi and RF remotes
• Waterproof grade: IP20
Specifications
Part No. |
Input Voltage |
Output |
Output |
Remarks |
Size (LxWxH) |
---|---|---|---|---|---|
SR-1009EATYWi-5C |
12-48VDC
|
Max. 8A/CH@12V/24V
Max. 6A/CH@36V
Max. 4A/CH@48V
|
Max. 96W/CH@12V
Max. 192W/CH@24V
Max. 216W/CH@36V
Max. 192W/CH@48V
|
Constant voltage |
170x59x29mm
|

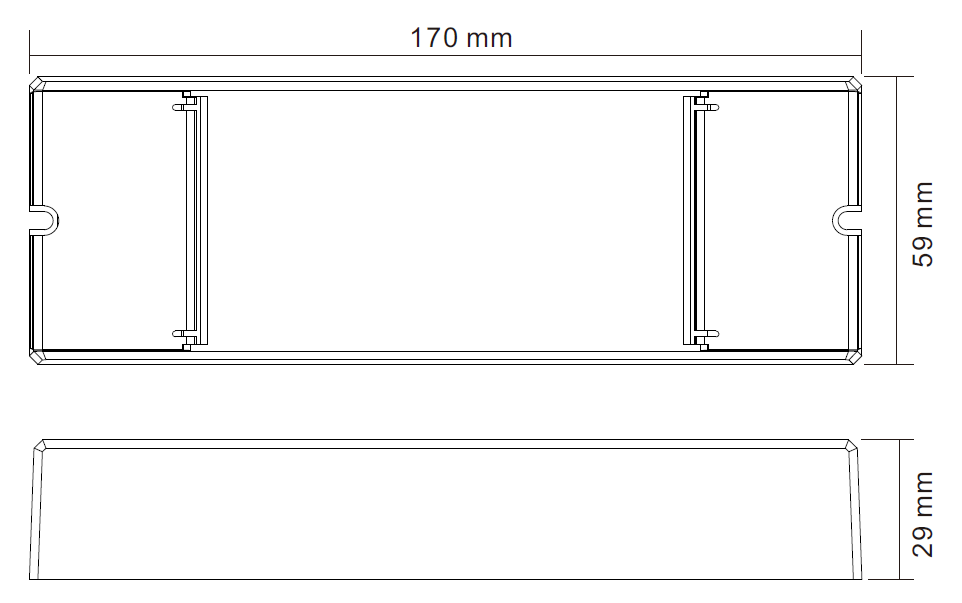

Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-1009EATYWi-5C-Instruction.pdf
