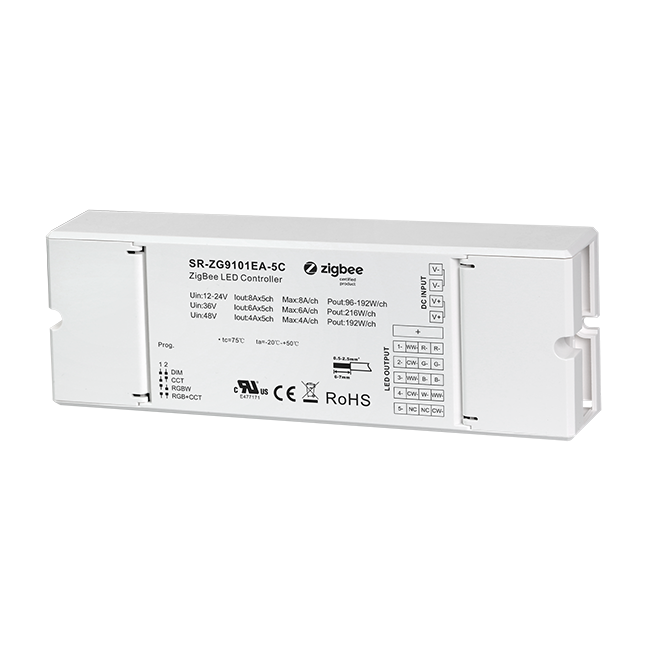

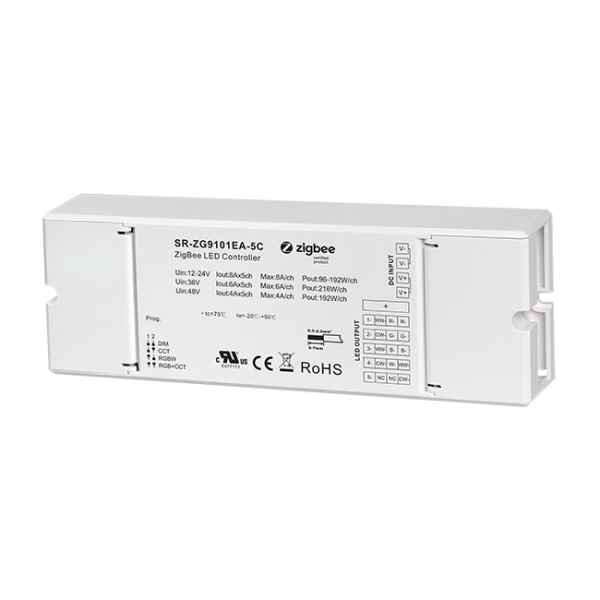

4 in 1 Universal Zigbee LED Controller SR-ZG9101EA-5C

SR-ZG9101EA-5C is a zigbee 3.0 based 4 in 1 LED lighting device with 5 channels output which can control RGB+CCT, RGBW, tunable white, single color LED lights, the device can search and pair to Zigbee network and be controlled from your controller or hub interface. Internet remote control option via smart phone, computer or tablet extends your control convenience. The Zigbee LED dimmer can be compatible with universal Zigbee gateways or coordinators. It can directly pair to zigbee remotes through touchlink commission. In addition, once compatible Zigbee remotes are added to the same network, they can bind to and be controlled by the remotes.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.

It is designed with DC 12-48V input and 5 channel constant voltage output, max. output current per channel can be up to 8A. Dip switches are used to select a device type from the 4 device types: RGB+CCT, RGBW, tunable white, single color.

Key Features

• RGB+CCT, RGBW, tunable white, single color 4 in 1 Zigbee LED device, up to 8A per channel, 5 channels output
• Zigbee 3.0 based
• Enables to control RGB+CCT, RGBW, tunable white, single color LED lights
• Zigbee Mesh Network
• Support TouchLink Commissioning to pair to a Zigbee remote directly
• Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
• Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches
• Compatible with Universal ZigBee Gateway/Coordinator
• Compatible with universal ZigBee Remotes

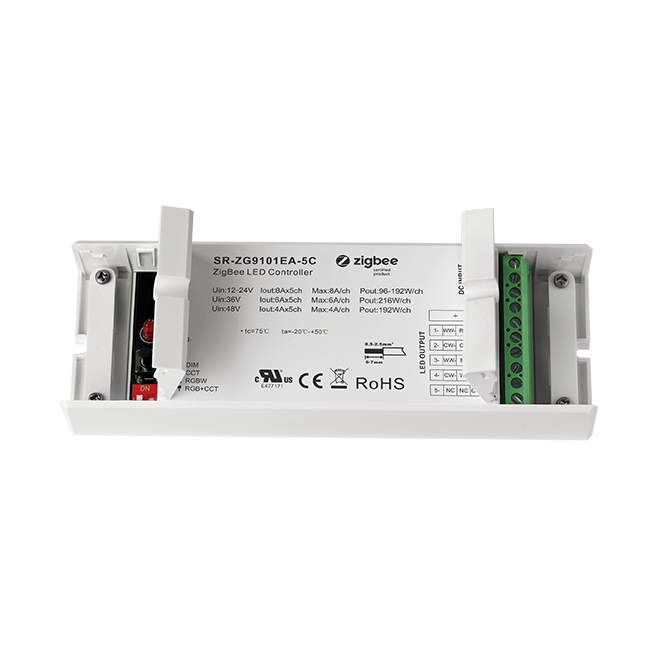

• Dip switches are used to select a device type from the 4 device types: RGB+CCT, RGBW, tunable white, single color
